  11. Duplex Locking Receptacle, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Brown

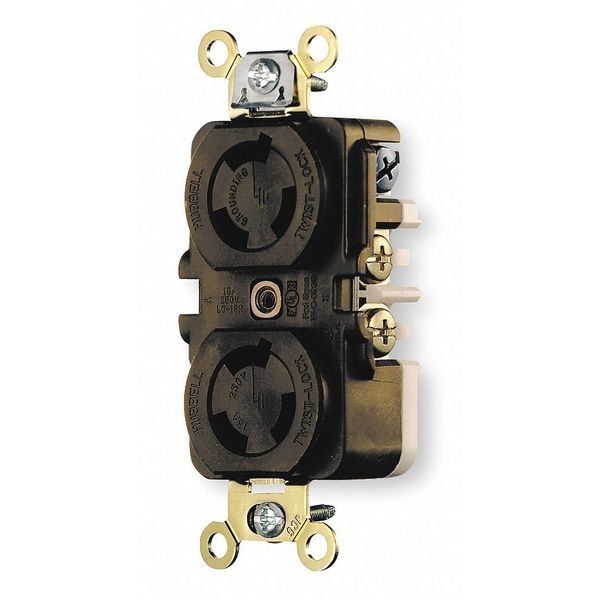

Hubbell Wiring Device-Kellems Duplex Locking Receptacle, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Brown HBL4550 - main

Duplex Locking Receptacle, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Brown

  • Mfr # HBL4550

  • Zoro # G0415301

product price: $46.71
/ea

Key Features

NEMA Receptacle Configuration
L6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL4550
Zoro #
G0415301
UPC #
783585002378
Country of Origin
United States

Dimensions

Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Wire Size
15A #14 AWG
Dimensions
3.29 in x 1.70 in x 1.17 in
Height
1.17 in
Width
1.70 in
Length
3.29 in

Details

Item
Duplex Locking Receptacle
NEMA Receptacle Configuration
L6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Mounting Type
Flush Mount
Special Features
With Cover
Wiring Style
Standard
Material
Impact Modified PBT
Grade
Industrial
AFCI
No
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Housing Material
Thermoplastic
Maximum Operating Temperature
167 Degrees F
Number of Gangs
1
For Location
Indoor
Includes Mounting Hardware
Yes
Polarized
Yes
Connection Orientation
Straight
Horsepower Rating
1 1/2 hp
Includes
Mounting Strap
For Environment
Dry
Lock Type
Twist-lock
Base Material
RTP
Spring Material
.031" Brass
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
Application
Heavy Duty Industrial
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
15 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amps
15

Description

• Reinforced thermoplastic construction
• Single piece, all brass contacts
• Single point break-off tabs
• Mounting strap tabs lock the body and base together
