Shop HUBBELL WIRING DEVICE-KELLEMS

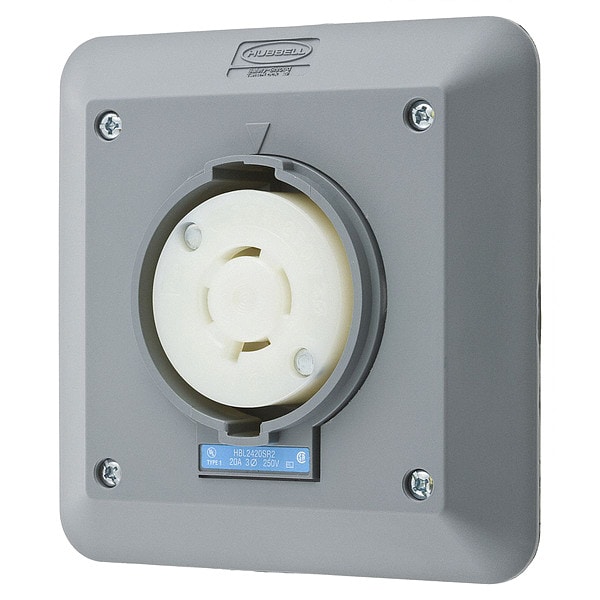

Locking Receptacle, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, Gray

  • Mfr # HBL2420SR2
  • Zoro # G3358677
product price:
$
52.49
/ea

Key Features

NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2420SR2
Zoro #
G3358677
UPC #
783585234526
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#16 AWG - #8 AWG solid or stranded copper wire only.

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Impact Resistant
Special Features
Corrosion resistant
IP Rating
IP20
Wiring Style
Standard
Mounting Type
Semi Flush Mount
Material
Thermoplastic
Grade
Industrial
For Location
Indoor
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Market
Industrial
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
12, 4, 4X
AFCI
No
Contact Material
Brass
Housing Material
Valox
Shrouded
Yes
Number of Gangs
2
Horsepower Rating
3 hp
Flammability
HB or better per UL94 or CSA 22.2 No. 0.6
Spring Material
.031" Brass
Lock Type
Twist-lock
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Amps
20
UL 94 Flammability Rating
V-2

Description

The HUBBELL 20A Twist-Lock Receptacle L15-20R is a locking receptacle with twist-lock mechanism for electrical connections. Featuring a twist-lock mechanism and polarized design, this three-pole, four-wire device supports up to 250V AC and 20 amps. Its thermoplastic housing with impact- and corrosion-resistant properties provides durability in demanding environments.


Key Features of the HUBBELL 20A Twist-Lock Receptacle L15-20R:

  • Lock Type: Twist-lock mechanism with alignment arrows and lock/unlock symbols for visual connection confirmation

  • Material: Engineered thermoplastic (Valox) housing; brass contacts; corrosion-resistant construction

  • Electrical Ratings: Rated for 20 A, 250V AC, three-phase operation

  • NEMA Configuration: L15-20R with grounded design

  • Wire Accommodation: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals

  • Mounting Type: Semi flush mount; shrouded design; non-flanged flange type

  • Temperature Range: Operates from -40°F to 167°F (maximum continuous temperature rise of 30°C at full rated current)

  • Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL 498 listed

  • NEMA Enclosure Rating/IP Rating: NEMA Type 1 / IP20—intended for indoor use only
