  11. Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

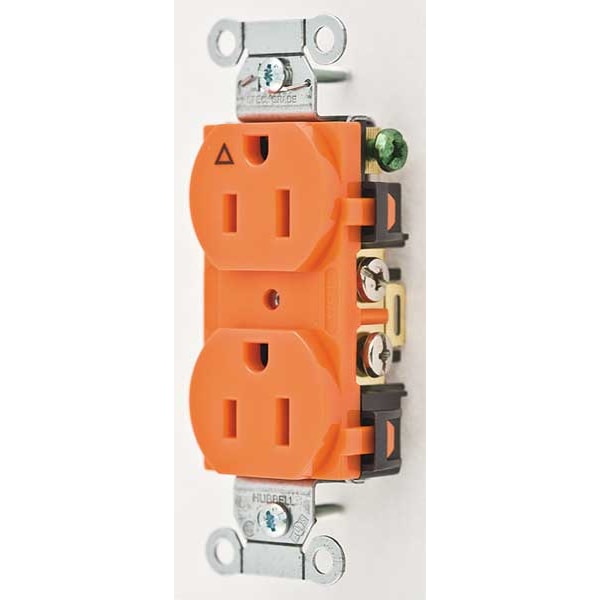

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount IG15CR - main

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

  • Mfr # IG15CR

  • Zoro # G2218343

product price: $8.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG15CR
Zoro #
G2218343
UPC #
783585147550
Country of Origin
China

Dimensions

Wire Size
#14 AWG to #10 AWG
Dimensions
1.32 in x 0.83 in x 3.28 in
Display Size
Standard Sized Product
Overall Depth
3.3 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Width
0.83 in
Length
1.32 in
Height
3.28 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Special Features
Isolated Ground
HP
1/2 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Weather Resistant
No
Number of Gangs
1
Mounting Type
Flush
Application Environment
Commercial
Tamper Resistant
No
Color
Orange
Wiring Method - Plugs and Receptacles
Side
Sub-Category
Duplex Receptacles
Voltage
125VAC
Power Indicator
No
Material
Nylon
NEMA Configuration
5-15
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant - Plugs and Receptacles
No
Corrosion Resistant
No
Surge Suppression
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Outlet Type
Duplex
Dielectric Strength
Withstands 2,000V minimum
Type
Standard Duplex
Amperage
15 A
Nema Rating
5-15R
Number Of Wires
3-Wire
Style
Smooth Face
Connectivity
Side Wired Screw Terminals
Series
Commercial Specification Grade
Brand
Hubbell Wiring Device-Kellems
Carton Quantity
10
Maximum Horsepower
0.5
NEMA Enclosure Rating
1
GFCI
No
Horsepower Rating
1/2 hp
Contact Material
Brass
Polarized
Yes
Grade
Federal Specification
Shrouded
No
Housing Material
Nylon
UL 94 Flammability Rating
V-2
AFCI
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
For Location
Indoor
Surge Protection
No
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Cover Type
No Cover
Market
Commercial
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Dielectric Voltage
Withstands 2,000V minimum
Mounting Screws
Galvanized Steel
Automatic Self-grounding Staple
Stainless steel
Current Interrupting
Certified for current interrupting at full rated current
Flammability
UL 94 V-2
Ground Contacts
Brass
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Wire Clamp
.062 in. (1.6) Nickel plated steel
Terminal Screws
Plated steel
Power Contacts
.030 in. (.8) Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Device Color
Orange
Base
Nylon
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Mounting Strap
.040 in. (1) Galvanized steel
Face
Nylon
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Wattage
1875 W
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
0.5
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Application
Commercial Specification Grade
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R OR is suitable for commercial specification grade applications. This receptacle features an isolated ground system, which separates the ground contacts from the mounting strap. It is rated for 15 amps and 125 volts, with side-wired screw terminals suitable for #14–#10 AWG copper conductors.


Key Features of the HUBBELL 15A Duplex Receptacle:

  • Isolated Ground: Features insulation barrier construction that isolates ground contacts from the mounting strap.

  • Electrical Ratings: Rated for 15 A and 125 V AC; NEMA configuration 5-15R.

  • Material Construction: Nylon base and face with brass power and ground contacts; galvanized steel mounting hardware included.

  • Wiring Method: Side-wired screw terminals accommodate #14–#10 AWG copper stranded or solid wire.

  • Performance: Rated for dielectric voltage of at least 2,000V; certified for current interrupting at rated current.

  • Operating Temperature Range: Maximum continuous temperature of 75°C (167°F), minimum -40°C without impact.

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186.
