  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

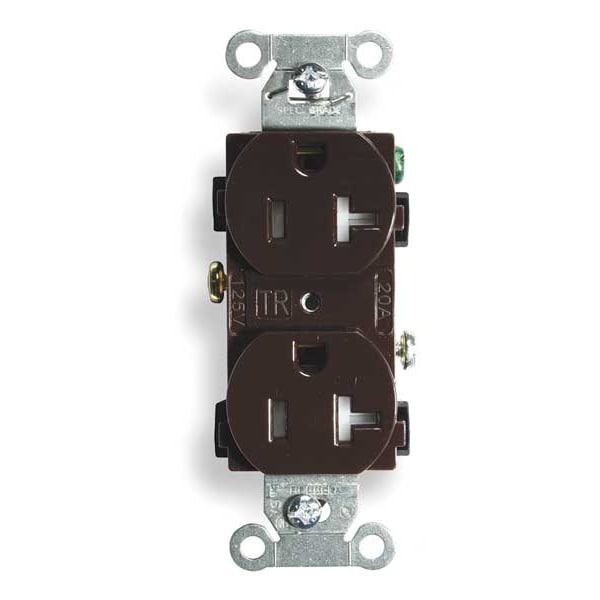

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR20TR - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR20TR

  • Zoro # G2400063

product price: $8.91
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR20TR
Zoro #
G2400063
UPC #
783585144115
Country of Origin
China

Dimensions

Face Plate Width
1.3 in
Minimum Wire Size
12 AWG
Overall Depth
3.3 in
Face Plate Height
2.7 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA Certified C22.2, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Material
Nylon
Application Environment
Commercial
Tamper Resistant
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Sub-Category
Duplex Receptacles
Surge Suppression
No
HP
1 hp
Corrosion Resistant
No
Weather Resistant
No
Wiring Method
Back, Side
Outlet Type - Plugs and Receptacles
Standard Duplex
Mounting Type
Flush
Number of Gangs
1
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
Outlet Type
Duplex
NEMA Configuration
5-20
Weather Resistant - Plugs and Receptacles
No
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
No
Type
Duplex
Connection Orientation
Straight
Grade
Federal Specification
Housing Material
Nylon
Polarized
Yes
NEMA Enclosure Rating
1
Maximum Operating Temperature
167 Degrees F
Shrouded
No
Market
Commercial, Industrial
For Location
Indoor
Contact Material
Brass
Cover Type
No Cover
GFCI
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
V-2
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Surge Protection
No
AFCI
No
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Receptacle Grade
Specification Grade Commercial Series, Tamper Resistant
Poles and Wires
2 Pole, 3-Wire Grounding
Base Material
Nylon
Mounting Screw Material
Steel-Zinc Plated
Current Interrupting
Certified for current interrupting at full rated current
Receptacle Style
Duplex
Auto Ground Clip Material
Stainless Steel
Rating
20A, 125V
Standard
NEMA
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Face Shape
Traditional
Mounting Strap Material
.040" (1) Steel (Galvanized)
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Brown
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Horsepower
1
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Top Material
Nylon
Power Contacts Material
.030" (.8) Brass
Flammability
UL 94 V2.

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R BN is an electrical outlet rated for indoor use. This duplex receptacle supports a maximum current of 20 amps at 125 volts AC, with a NEMA 5-20R configuration. It features tamper-resistant shutters for added protection in public or accessible areas and accommodates both back and side wiring methods using #12–#10 AWG copper conductors. The device includes grounding provisions, flush mounting capability, and comes with necessary mounting hardware.


Key Features of the HUBBELL 20A Duplex Receptacle:

  • Amperage/Voltage: Rated for 20A, 125V AC operation

  • NEMA Configuration: Standard NEMA 5-20R duplex outlet

  • Tamper Resistant: Built-in shutter mechanism

  • Material Construction: Nylon housing with galvanized steel mounting strap; brass power contacts

  • Wiring Method: Supports both back and side wire connections (#12–#10 AWG copper)

  • Mounting Type: Flush mount design; includes grounding staple and hardware

  • Certification & Standards: UL Listed (UL498), CSA Certified C22.2 No.42, Federal Specification WC596G, NEMA WD-6 compliant

  • Operating Temperature Range: -40°F to +167°F (-40°C to +75°C)
