  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

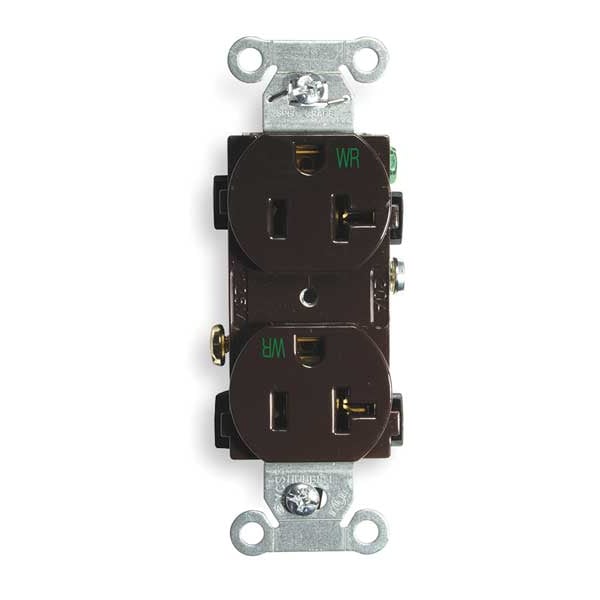

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR20WR - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR20WR

  • Zoro # G1395247

product price: $8.59
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR20WR
Zoro #
G1395247
UPC #
783585144603
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Overall Depth
3.3 in
Minimum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Face Plate Width
1.3 in
Dimensions
1.32 in x 1.06 in x 3.28 in
Wire Size
#12 AWG to #10 AWG
Width
1.06 in
Display Size
Standard Sized Product
Height
3.28 in
Length
1.32 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
HP
1 hp
Voltage
125VAC
Weather Resistant - Plugs and Receptacles
Yes
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant
Yes
Application Environment
Commercial
NEMA Configuration
5-20
Tamper Resistant
No
Surge Suppression
No
Material
Nylon
Mounting Type
Flush
Power Indicator
No
Number of Gangs
1
Corrosion Resistant
No
Outlet Type
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Standard Duplex
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Type
Duplex
Contact Material
Brass
Housing Material
Nylon
Market
Commercial, Industrial
NEMA Enclosure Rating
1
Shrouded
No
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Surge Protection
No
Includes Mounting Hardware
Yes
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Horsepower Rating
1 hp
AFCI
No
UL 94 Flammability Rating
V-2
Grade
Federal Specification
GFCI
No
Polarized
Yes
Cover Type
No Cover
Poles and Wires
2 Pole, 3-Wire Grounding
Face Shape
Traditional
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Receptacle Style
Duplex
Rating
20A, 125V
Power Contacts Material
.030" (.8) Brass
Dielectric Voltage
Withstands 2,000V minimum
Auto Ground Clip Material
Stainless Steel
Horsepower
1
Current Interrupting
Certified for current interrupting at full rated current
Flammability
UL 94 V-2
Top Material
Nylon
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Standard
NEMA
Receptacle Grade
Specification Grade Commercial Series, Weather Resistant
Device Color
Brown
Mounting Screw Material
Steel-Zinc Plated
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Mounting Strap Material
.040" (1) Steel (Galvanized)
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Base Material
Nylon
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Application
Commercial Specification Grade
Wattage
2500 W
Material - Mounting Hardware
Screw Mounting
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Horsepower - Maximum
1
Nema Rating
5-20R
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Commercial Specification Grade
Dielectric Strength
Withstands 2,000V minimum
Style
Smooth Face
Environmental Conditions
Weather Resistant
Industry Standard(s)
Certified to CSA C22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R BN is a commercial specification grade electrical outlet intended for flush mounting in standard applications. This duplex receptacle features individual wiring terminals that are [Omit], wrap-around galvanized steel straps, and triple wipe brass contacts. It supports both back and side wiring methods and accommodates #12 to #10 AWG copper conductors.


Key Features of the HUBBELL 20A Duplex Receptacle 125VAC 5-20R BN:

  • Amperage/Voltage: Rated for 20A, 125V AC

  • NEMA Configuration: 5-20R (2-pole, 3-wire grounding)

  • Weather Resistant: Rated for use in weather-exposed environments

  • Material Construction: Nylon base and face with galvanized steel mounting strap

  • Wiring Options: Back and side wired; screw terminal connections

  • Terminal Accommodation: Accepts #12–#10 AWG copper stranded or solid wire

  • Dielectric Strength: Withstands minimum of 2,000V

  • Operating Temperature Range: -40°C to +75°C (without impact)

  • Certification & Standards: UL Listed to UL498, CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6 compliant
