Shop HUBBELL WIRING DEVICE-KELLEMS

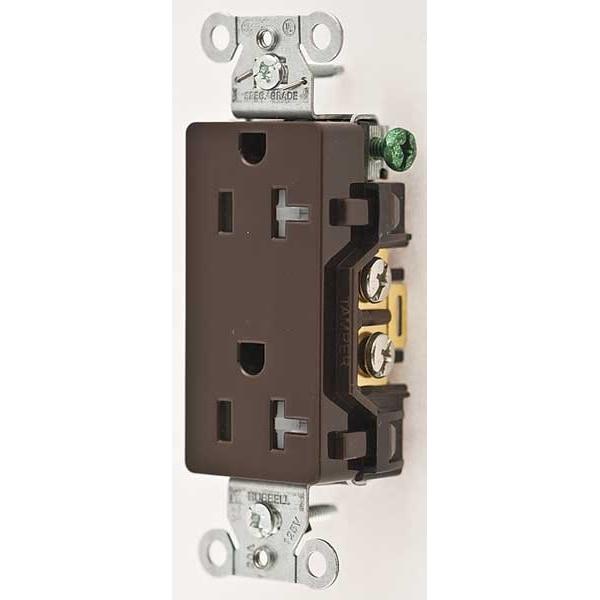

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # DR20TR

  • Zoro # G0734002

product price:
$
11.14
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DR20TR
Zoro #
G0734002
UPC #
783585144399
Country of Origin
China

Dimensions

Face Plate Height
2.7 in
Mount Hole Center-to-Center Width
1.3 in
Overall Depth
1.3 in
Mount Hole Center-to-Center Height
2.7 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
Standards
C22.2, Certified to CSA, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, No. 42, UL Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Outlet Type
Decorator
Corrosion Resistant
No
Outlet Type - Plugs and Receptacles
Decorator Duplex
NEMA Configuration
5-20
Application Environment
Commercial
Power Indicator
No
Sub-Category
Duplex Receptacles
Number of Gangs
1
Tamper Resistant
Yes
Mounting Type - Plugs and Receptacles
Flush
Material
Nylon
Voltage
125VAC
Weather Resistant
No
HP
1 hp
Weather Resistant - Plugs and Receptacles
No
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Surge Suppression
No
Type
Duplex
UL 94 Flammability Rating
V-2
GFCI
No
Horsepower Rating
1 hp
Shrouded
No
Polarized
Yes
For Location
Indoor
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
Grade
Federal Specification
Housing Material
Nylon
Cover Type
No Cover
Market
Commercial, Industrial
Maximum Operating Temperature
167 Degrees F
Surge Protection
No
Includes Mounting Hardware
Yes
Connection Orientation
Straight
NEMA Enclosure Rating
1
AFCI
No
Flammability
UL 94 V2.
Terminal Accommodation
#12-#10 AWG copper stranded or solid conductor only
Mounting Strap Material
.040" (1) Steel (Galvanized)
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Device Color
Brown
Terminal Screw Material
#8-32 Brass, Multiple Drive
Mounting Screw Material
Steel-Zinc Plated
Poles and Wires
2 Pole, 3-Wire Grounding
Dielectric Voltage
Withstands 2,000V minimum
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Face Style
Smooth Face
Face Shape
Decorator
Ground Screw Material
#8-32 Brass, Multiple Drive
Current Interrupting
Certified for current interrupting at full rated current
Standard
NEMA
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Receptacle Grade
StyleLine Decorator Series, Specification Grade, Tamper Resistant
Auto Ground Clip Material
Stainless Steel
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Rating
20A, 125V
Top Material
Nylon
Power Contacts Material
.030" (.8) Brass
Base Material
Nylon
Horsepower
1

Description

The HUBBELL 5-20R Decorator Duplex Receptacle is a flush mount electrical outlet rated for 20A and 125V AC, suitable for commercial and industrial indoor applications. This tamper-resistant receptacle with a decorator face style features a smooth decorator face style and accommodates both back and side wiring methods with screw terminals. It is grounded, polarized, and suitable for single-phase applications requiring a duplex outlet configuration.


Key Features of the HUBBELL 5-20R Decorator Duplex Receptacle:

  • Amperage/Voltage: Rated for 20A, 125V AC

  • NEMA Configuration: 5-20R duplex outlet

  • Tamper Resistant: Includes internal shutters

  • Mounting Type: Flush mount; includes mounting hardware

  • Nylon housing with brass power contacts

  • Wiring Method: Supports both back and side wire connections (#12–#10 AWG copper)

  • Certification & Standards: UL Listed (File E2186), CSA Certified C22.2 No.42, NEMA WD-6 compliant

  • Operating Temperature Range: -40°F to 167°F (maximum continuous temperature rise of 30°C at full load)

  • Grounding: Grounded with #8-32 brass ground screw; includes grounding staple
