Shop HUBBELL WIRING DEVICE-KELLEMS

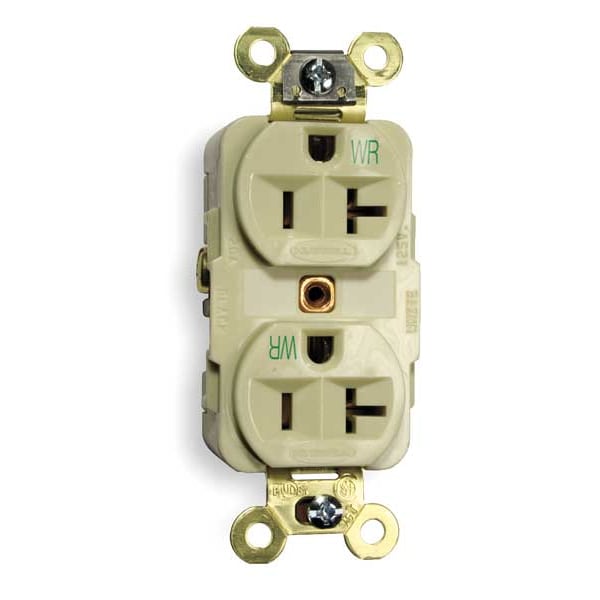

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5362IWR

  • Zoro # G1726471

product price:
$
35.85
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL5362IWR
Zoro #
G1726471
UPC #
783585320564
Country of Origin
United States

Dimensions

Wire Size
#12 AWG to #10 AWG
Height
1.19 in
Dimensions
3.28 in x 1.65 in x 1.19 in
Display Size
Standard Sized Product
Length
3.28 in
Width
1.65 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.7 in
Minimum Wire Size
12 AWG
Overall Depth
1.2 in
Face Plate Width
1.7 in
Maximum Wire Size
10 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Corrosion Resistant
No
Application Environment
Harsh and Heavy Use Industrial
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
No
Sub-Category
Duplex Receptacles
Number of Gangs
1
Voltage
125VAC
Tamper Resistant
No
Mounting Type
Flush
Color
Ivory
NEMA Configuration
5-20
Weather Resistant
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Weather Resistant - Plugs and Receptacles
Yes
Outlet Type
Duplex
Material
Nylon/Reinforced PET
Outlet Type - Plugs and Receptacles
Standard Duplex
HP
1 hp
Style
Finder Groove Face
Application
Extra Heavy Duty Specification Grade
Carton Quantity
10
Connectivity
Back and Side Wired Screw Terminals
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Amperage
20 A
Environmental Rating
Weather Resistant
Maximum Horsepower
1
Type
Weather Resistant
Dielectric Strength
Withstands 2,000V minimum
Mounting Hardware Material
Screw Mounting
UPC
783585000000
Wattage
2500 W
Brand
Hubbell Wiring Device-Kellems
Series
Extra Heavy Duty
Nema Rating
5-20R
Number Of Wires
3-Wire
Weight
0.25 lb
AFCI
No
Maximum Operating Temperature
167 Degrees F
NEMA Enclosure Rating
1
Market
Industrial
Horsepower Rating
1 hp
Shrouded
No
Grade
Federal Specification
Polarized
Yes
Connection Orientation
Straight
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
UL 94 Flammability Rating
V-0, V-2
Housing Material
Nylon, Reinforced PET
GFCI
No
Surge Protection
No
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
Contact Material
Nickel-Plated Brass
Includes Mounting Hardware
Yes
Auto Ground Clip Material
Stainless Steel
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Horsepower
1
Top Material
Nylon
Certification
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Rating
15A, 125V
Dielectric Voltage
Withstands 2,000V minimum
Other Available Colors
Brown, Black, Gray, Ivory, Red, White
Poles and Wires
2 Pole, 3-Wire Grounding
Device Color
Ivory
Ground Screw Material
#10-32 Silicon Bronze (Green)
Face Style
Finder Groove
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Standard
NEMA
Mounting Screw Material
Steel-Zinc Plated
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Receptacle Grade
Extra Heavy Duty, Weather Resistant
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Power Contacts Material
.037" (.9) Brass
Current Interrupting
Certified for current interrupting at full rated current
Flammability
Top: UL 94V-2, Base: UL 94V-0, UL 94 V2 or better
Mounting Strap Material
.050" (1.3) Brass
Face Shape
Traditional
Base Material
Reinforced PET
Receptacle Style
Duplex

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV is a traditional duplex straight blade receptacle suitable for heavy-duty applications in accordance with specification-grade requirements. It includes weather-resistant construction; intended for use in industrial environments as specified by manufacturer guidelines. The device supports both back and side wiring methods with screw terminals, accommodates #12 to #10 AWG copper wire, and provides grounding via an integral ground strap. This receptacle meets multiple industry standards including UL, CSA, Federal Specification W-C-596, and NEMA WD-6.


Key Features of the HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV:

  • Amperage/Voltage: Rated for 20 A at 125 VAC

  • NEMA Configuration: 5-20R (2-pole, 3-wire grounded)

  • Weather Resistant: Rated as weather resistant per manufacturer specifications

  • Material Construction: Nylon face/top with reinforced PET base; nickel-plated brass contacts

  • Wiring Method: Back and side wired screw terminals support stranded or solid copper wire (#12–#10 AWG)

  • Mounting Type: Flush mount with included mounting hardware

  • Face Style: Face includes groove pattern for identification purposes

  • Circuit ID Face & Deep Body Design: Deep body design accommodates different installation scenarios

  • Dielectric Strength: Withstands minimum of 2,000V dielectric voltage

  • Certain Certifications Met: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-596G compliant
