  6. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

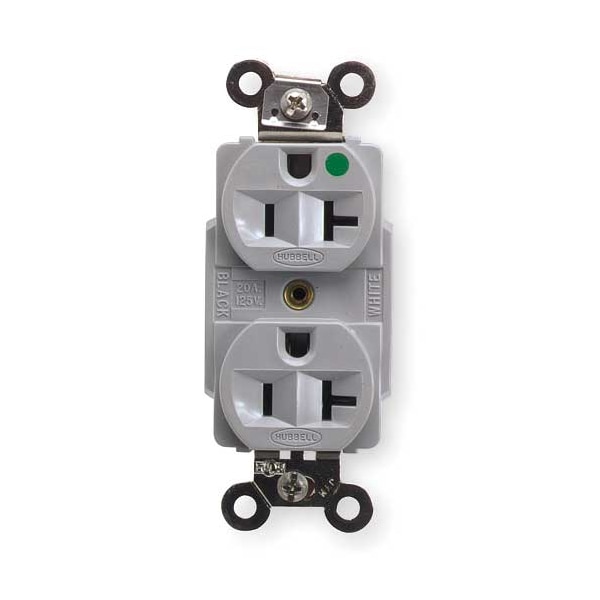

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8300GY - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8300GY

  • Zoro # G2721695

product price:  $37.95
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8300GY
Zoro #
G2721695
UPC #
783585435749
Country of Origin
United States

Dimensions

Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.65 in x 1.19 in
Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Minimum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in
Face Plate Height
2.7 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Material
Thermoplastic Polyester
Sub-Category
Duplex Receptacles
Corrosion Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Heavy Use Hospital Grade
Outlet Type
Duplex
Outlet Type - Plugs and Receptacles
Standard Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Power Indicator
No
Mounting Type
Flush
Voltage
125VAC
NEMA Configuration
5-20
Weather Resistant
No
Weather Resistant - Plugs and Receptacles
No
Tamper Resistant
No
HP
1 hp
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
Number of Gangs
1
Number Of Wires
3-Wire
Type
Receptacle
Brand
Hubbell Wiring Device-Kellems
Style
thermoplastic polyester face
Carton Quantity
10
Nema Rating
5-20R
Maximum Horsepower
1
Amperage
20 A
Connectivity
Back and Side Wired Screw Terminals
Series
Hospital Grade
Dielectric Strength
Withstands 2,000V minimum
AFCI
No
Housing Material
Thermoplastic
NEMA Enclosure Rating
1
Horsepower Rating
1 hp
Shrouded
No
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Minimum Operating Temperature
-40 Degrees F
Surge Protection
No
For Location
Indoor
GFCI
No
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Cover Type
No Cover
Grade
Hospital Grade Fed. Spec.
Includes Mounting Hardware
Yes
UL 94 Flammability Rating
V-0
Contact Material
Nickel-Plated Brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Poles and Wires
2 Pole, 3 Wire
Wallplate or Weatherproof Cover
Duplex Opening
Device Grade
Heavy Duty Spec Grade
Flammability
UL 94 V-0
Current Interrupting
Certified for current interrupting at full rated current
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Gray
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only

Description

The HUBBELL 20A Duplex Receptacle 125VAC 5-20R GY is a Hospital grade electrical receptacle rated for use in specified applications. This duplex outlet features a deep body with an impact resistant thermoplastic polyester face and is rated for 20 amps at 125 volts AC. It includes both back and side wired screw terminals to accommodate #12–#10 AWG copper wire, supporting flexible installation options in flush mount applications.


Key Features of the HUBBELL 20A Duplex Receptacle:

  • Hospital Grade: Meets UL requirements for hospital grade devices; intended for use in designated areas.

  • Contact Design: Nickel-plated brass bypass contacts

  • Grounding System: Four-point grounding

  • Impact Resistance: Deep face design constructed with impact resistant thermoplastic polyester

  • Circuit ID Marking Area: Circuit ID marking area

  • Wiring Options: Back and side wired screw terminals accept #12–#10 AWG stranded or solid copper wire

  • NEMA Configuration: NEMA 5-20R, single phase, two-pole, three-wire grounded configuration

  • Operating Temperature Range: Operating temperature range: -40°F to 167°F (-40°C to +75°C)

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 standards.
