  6. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

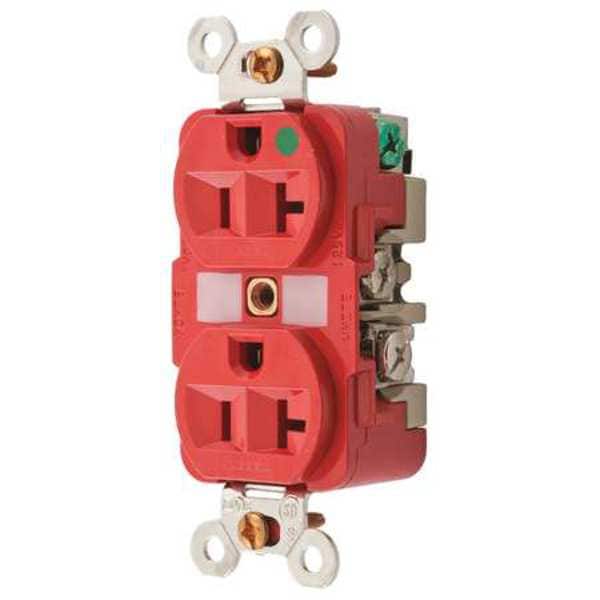

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8300RMRI - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL8300RMRI

  • Zoro # G4472246

product price:  $44.15
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL8300RMRI
Zoro #
G4472246
UPC #
783585148663
Country of Origin
United States

Dimensions

Wire Size
#12 AWG to #10 AWG
Display Size
Standard Sized Product
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Minimum Wire Size
12 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Surge Suppression
No
Outlet Type
Duplex
Number of Gangs
1
Power Indicator
No
Sub-Category
MRI Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
NEMA Configuration
5-20
Weather Resistant - Plugs and Receptacles
No
Mounting Type
Flush
HP
1 hp
Voltage
125VAC
Wiring Method
Back, Side
Outlet Type - Plugs and Receptacles
Standard Duplex
Weather Resistant
No
Mounting Type - Plugs and Receptacles
Flush
Material
Reinforced Thermoplastic Polyester/Nickel Plated brass
Tamper Resistant
No
Corrosion Resistant
No
Color
Red
Application Environment
Heavy Use Hospital Grade
Wiring Method - Plugs and Receptacles
Back and Side
Dielectric Strength
Withstands 2,000V minimum
Type
Receptacle
Amperage
20 A
Number Of Wires
3-Wire
Maximum Horsepower
1
Carton Quantity
10
Nema Rating
5-20R
Connectivity
Back and Side Wired Screw Terminals
Brand
Hubbell Wiring Device-Kellems
Style
thermoplastic polyester face
Series
Hospital Grade
Grade
Hospital Grade Fed. Spec.
NEMA Enclosure Rating
1
GFCI
No
UL 94 Flammability Rating
V-2
Housing Material
Nylon
Includes
Mounting Hardware, Wall Plate or Weatherproof Cover
Minimum Operating Temperature
-40 Degrees F
AFCI
No
Shrouded
No
Contact Material
Nickel-Plated Brass
Connection Orientation
Straight
Surge Protection
No
For Location
Indoor
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Cover Type
No Cover
Face
Nylon
Mounting Screws
Bronze
Terminal Accommodation
#12-#10 AWG stranded or solid copper wire only
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Mounting Strap
.050 in. (1.3) Nickel plated brass
Base
PBT
By-Pass Power Contacts
.036". (.9) Nickel plated brass
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Terminal Screws
Plated brass
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Red
Flammability
UL 94V-2
Clamp
Nickel plated brass
Current Interrupting
Certified for current interrupting at full rated current
Ground Contacts
.025 in. (.6) Brass

Description

The HUBBELL 20A Duplex MRI Receptacle 125VAC 5-20R RD is a hospital grade, traditional duplex receptacle suitable for installation in medical and MRI lab environments. It features all non-ferrous construction to prevent magnetic interference, with a flush mount design suitable for indoor installations. The receptacle supports both back and side wiring methods using screw terminals, accommodating #12 to #10 AWG copper wire.


Key Features of the HUBBELL 20A Duplex MRI Receptacle:

  • Amperage/Voltage: Rated for 20 A at 125 VAC

  • NEMA Configuration: 5-20R duplex outlet with polarized, grounded connections (2-pole, 3-wire)

  • Construction: Non-ferrous materials; nickel-plated brass contacts and integral ground strap

  • Hospital Grade: Meets Federal Specification W-C-596 and UL Hospital Grade requirements

  • Impact Resistant: Deep nylon face

  • Grounding System: Four-point grounding system

  • Wiring Method: Back or side wired screw terminals compatible with stranded or solid copper wire (#12–#10 AWG)

  • Operating Temperature Range: -40°F to +167°F (maximum continuous temperature up to 75°C)

  • Includes mounting hardware; wall plate or weatherproof cover included as specified by application needs
