- Item

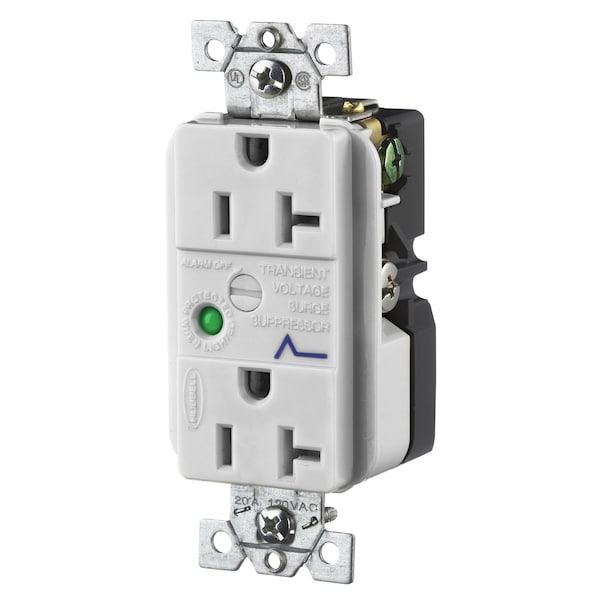

- Duplex Straight Blade Receptacle
- Receptacle Type
- Duplex
- NEMA Receptacle Configuration
- 5-20R
- Current Rating
- 20 A
- Voltage Rating
- 125V AC
- Phase
- Single
- Number of Poles
- 2
- Number of Wires
- 3
- Wire Connection Type
- Screw Terminals
- Grounding
- Grounded
- Housing Color
- Office White
- Mount Type
- Flush
- Standards
- CSA Certified C22.2 No. 42, UL 498, UL E2186
- Flange Type
- Non-Flanged
- Color
- Office White
- Type
- Duplex
- Material
- Composite
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Outlet
- Straight Blade
- Mounting Hardware Material
- Mounting Screws
- UPC
- 783585000000
- Indicator Type
- LED and Audible Alarm
- Connectivity
- Terminal Screws
- Nema Rating
- 5-20R
- Application
- Decorator Duplex
- Environmental Rating
- Indoor Dry Unless Protected By Additional Means
- Frequency
- 60 Hz
- Series
- Specification Grade
- Amperage
- 20 A
- Carton Quantity
- 10
- Response Time
- 5
- Brand
- Hubbell Wiring Device-Kellems
- ANSI/IEEE
- C62.41 (IEEE 587)
- Receptacle Grade
- Standard
- CSA Certified
- To Specification C22.2 No. 42
- Poles and Wires
- 2 Pole, 3 Wire
- Grounding Screw
- Steel (Green)
- Receptacle Style
- Duplex
- Power Contact
- .031" (.8) Brass
- Auto Ground Clip
- Stainless Steel
- Clamping Plate
- .031" (.8) Brass
- Certifications
- UL Listed File E2186
- Installation Categories
- A (Ring Wave), "B" (Unidirectional Impulses)
- Mounting Screws
- Steel, Zinc-Plated
- Device Base
- Nylon
- LED
- Red
- Contact Design
- Tandem Modified Bypass
- Listed To:
- UL Standards 498 Receptacles, Meets UL1449 TVSS
- Device Top
- Nylon
- Mounting Strap
- .050" (1.3) Steel-Zinc Coated
- Product Type
- tvss-receptacles
- Terminal Screws
- #8-32 Brass
- Performance
Electrical - Protection Modes - Normal and Common Modes
Electrical - Response Time - Approximately 5 ns
Electrical - Transient Suppression - Peak Energy (10 X 100µs), Peak Current (8 X 20µs)
Electrical - Voltage - 120V AC + 10% - 15%
Environmental - Flammability - UL 94V-2
Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
- Industry Standard(s)
- CSA Certified to Specification C22.2 No. 42
Listed to UL Standards 498
UL Listed File E2186
- Material - Mounting Hardware
- Mounting Screws
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Indicator(s) Type
- LED and Audible Alarm
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Frequency Rating
- 60 Hz
