  11. Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

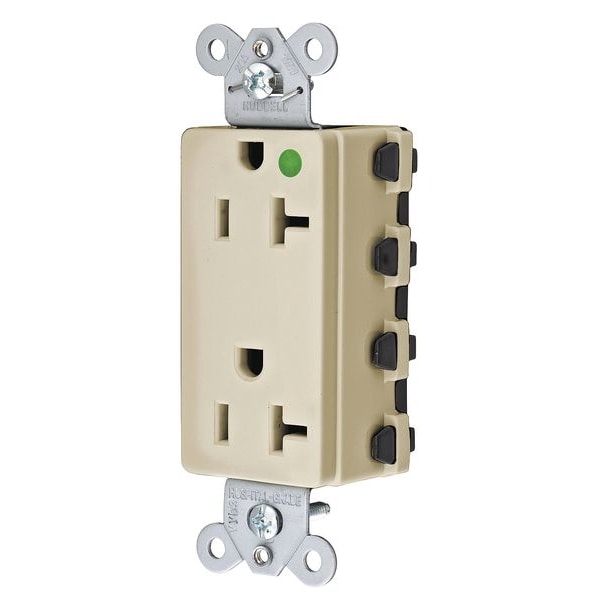

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded SNAP2182IA - main

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # SNAP2182IA

  • Zoro # G4631882

product price: $24.49
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2182IA
Zoro #
G4631882
UPC #
783585247892
Country of Origin
China

Dimensions

Height
1.1 in
Width
1.64 in
Maximum Wire Size
12 AWG
Face Plate Width
1.6 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.6 in
Overall Depth
1.1 in
Display Size
Standard Sized Product
Length
3.28 in
Dimensions
3.28 in x 1.64 in x 1.1 in
Wire Size
#12 AWG

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Wiring Method
Back
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Decorator Duplex
Corrosion Resistant
No
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type
Decorator
Tamper Resistant
No
Weather Resistant - Plugs and Receptacles
No
Wiring Method - Plugs and Receptacles
Modular
NEMA Configuration
5-20
Application Environment
Heavy Use Hospital Grade
Surge Suppression
No
Weather Resistant
No
Sub-Category
Duplex Receptacles
Number of Gangs
1
Material
Nylon
Voltage
125VAC
Power Indicator
No
Type
Style Line
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Grade
Hospital Grade Fed. Spec.
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Contact Material
Brass
Surge Protection
No
UL 94 Flammability Rating
V-2
AFCI
No
Shrouded
No
For Location
Indoor
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
1
Housing Material
Nylon
Includes
Grounding Clip, Mounting Hardware
Horsepower Rating
1 hp
Cover Type
No Cover
Current Interrupting
Receptacle certified for current interrupting at full rated current
Dielectric Voltage
Withstands 2,000V minimum
Mounting Strap
Galvanized steel
Operating Temperature
Maximum continuous 75°C; minimum -40°C (without impact)
Ground Contacts
Brass
Base
PBT
Face
Nylon
Automatic Self-grounding Staple
Stainless steel
Flammability
UL 94V-2
Power Contacts
Brass
Device Color
Ivory
Mounting Screws
Zinc plated steel
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact)
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Number Of Conductors
3-Wire Grounding
Nema Rating
5-20R
Horsepower - Maximum
1
Style
Style Line Decorator
Wattage
2500 W
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Series
Hospital Grade
Application
Hospital Grade

Description

The HUBBELL SNAPConnect® Hospital Grade Decorator Duplex Receptacle is a 20 A, 125V AC flush mount outlet suitable for modular wiring installations. Featuring a connectorized design, this receptacle allows the modular connector to be installed during rough-in and then snapped into place after wall installation, facilitating setup and device change-out. It is rated hospital grade; complies with applicable industry standards for heavy use environments.


Key Features of the HUBBELL SNAPConnect® Hospital Grade Decorator Duplex Receptacle:

  • Amperage/Voltage: Rated for 20 A at 125V AC

  • NEMA Configuration: 5-20R decorator duplex outlet with polarized, grounded connections

  • Wiring Method: Modular back-wired connection supports #12 AWG wire size

  • Mounting Type: Flush mount with included grounding clip and mounting hardware

  • Material Construction: Nylon face and housing; brass power contacts; galvanized steel mounting strap; stainless steel self-grounding staple

  • Dielectric Strength & Flammability: Withstands minimum 2,000V dielectric voltage; UL 94V-2 flammability rating

  • Operating Temperature Range: -40°F to 167°F (maximum continuous operation at 75°C)

  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186
