  11. Duplex Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

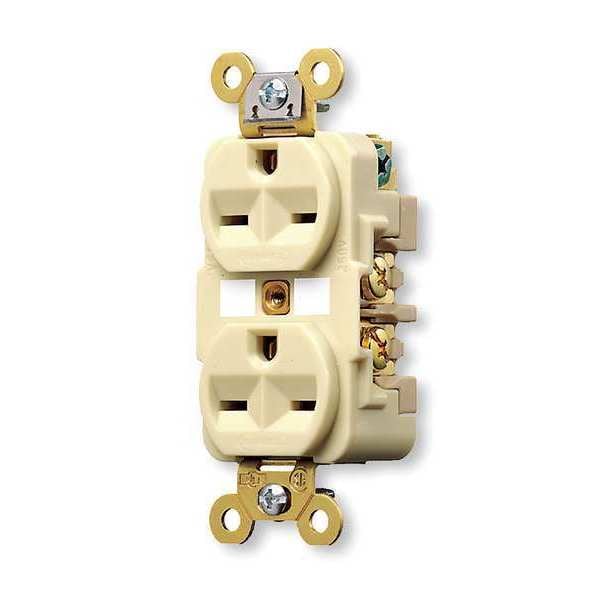

Hubbell Wiring Device-Kellems Duplex Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5662I - main

Duplex Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5662I

  • Zoro # G2632156

product price: $32.60
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5662I
Zoro #
G2632156
UPC #
783585435589
Country of Origin
United States

Dimensions

Dimensions
3.28 in x 1.65 in x 1.19 in
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Width
1.65 in
Height
1.19 in
Length
3.28 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Overall Depth
1.2 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG
Face Plate Width
1.7 in

Details

Item
Duplex Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA C22.2 No. 42, NEMA WD-6, UL 498, UL Federal Specification WC-596G
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
HP
2 hp
Number of Gangs
1
Outlet Type
Duplex
Material
Nylon/Reinforced PET
Power Indicator
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Mounting Type - Plugs and Receptacles
Flush
Voltage
250VAC
Mounting Type
Flush
Application Environment
Industrial
NEMA Receptacle Configuration - Plugs and Receptacles
6-15R
Surge Suppression
No
Corrosion Resistant
No
Sub-Category
Duplex Receptacles
Weather Resistant
No
Weather Resistant - Plugs and Receptacles
No
Color
Ivory
NEMA Configuration
6-15
Tamper Resistant
No
Type
Standard Duplex
Mounting Hardware Material
Screw Mounting
Connectivity
Back and Side Wired
Number Of Wires
3-Wire
Brand
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
Weight
0.25 lb
UPC
783585000000
Application
Extra Heavy Duty
Amperage
15 A
Carton Quantity
10
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Series
Extra Heavy Duty
Wattage
3750 W
Style
Finder Groove Face
Nema Rating
6-15R
Maximum Horsepower
1.5
Connection Orientation
Straight
Polarized
Yes
Includes Mounting Hardware
Yes
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Market
Industrial
NEMA Enclosure Rating
1
Includes
Grounding Clip, Mounting Hardware
Shrouded
No
Cover Type
No Cover
For Location
Indoor
Horsepower Rating
1 1/2 hp
AFCI
No
UL 94 Flammability Rating
V-0, V-2
Housing Material
Nylon
Surge Protection
No
Grade
Federal Specification
GFCI
No
Other Available Colors
Brown, Ivory
Poles and Wires
2 Pole, 3-Wire Grounding
Face Shape
Traditional
Mounting Strap Material
.050" (1.3) Brass
Top Material
Nylon
Base Material
Reinforced PET
Certification
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Operating Temperatures
Maximum continuous 75°C, minimum -40°C (w/o impact).
Flammability
Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.
Current Interrupting
Certified for current interrupting at full rated current.
Dielectric Voltage
Withstands 2,000V minimum.
Face Style
Finder Groove
Terminal Identification
Terminals identified in accordance with UL498 (Brass, White, Green).
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Horsepower
1.5
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Power Contacts Material
.037" (.9) Phosphor Bronze
Standard
NEMA
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only.
Rating
15A, 250V
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Mounting Screw Material
Stainless Steel
Receptacle Grade
Heavy Duty Spec Grade
Receptacle Style
Duplex
Auto Ground Clip Material
Stainless Steel
Horsepower - Maximum
1.5
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
Certified to CSA 22.2, No. 42 File 285 Guide RTRT Fed Spec WC596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

• Deep nylon body design delivers increased impact resistance
• One-piece brass integral ground strap
• Finder Groove Face
• Deep body design with circuit ID face
