Shop HUBBELL WIRING DEVICE-KELLEMS

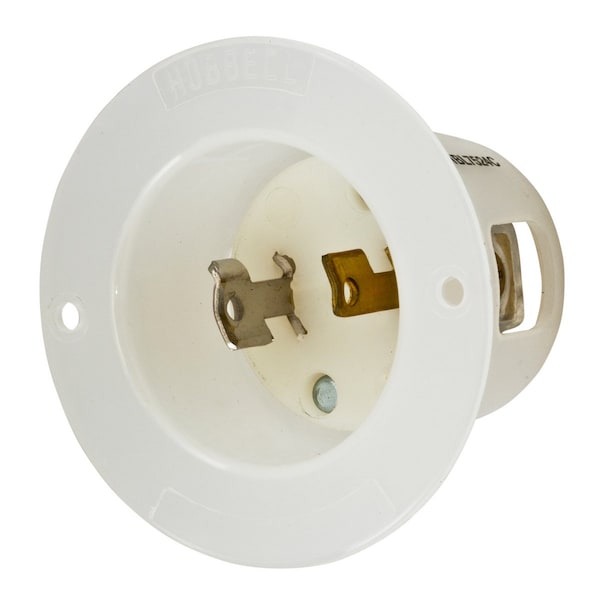

Flanged Locking Inlet, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, White

  • Mfr # HBL7524C

  • Zoro # G600701311

product price:
$
27.15
/ea

Key Features

NEMA Receptacle Configuration
L1-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL7524C
Zoro #
G600701311
UPC #
783585178004
Country of Origin
United States

Dimensions

Wire Size
15A #14 AWG
Height
1.72 in
Length
2.56 in
Width
2.56 in
Dimensions
2.56 in x 2.56 in x 1.72 in

Details

Item
Locking Plug
NEMA Receptacle Configuration
L1-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
2
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
White
Cover Type
No Cover
Flange Type
Flanged
Standards
Certified to CSA C22.2 No. 42, Fed. Spec W-C-596, Listed to UL 498
Resistance Properties
Moisture Resistant
IP Rating
IP20
Material
zinc plated
Wiring Style
Standard
Flange Material
Natural White Nylon
Special Features
Molded In or Stamped On
Application
Extra Heavy Duty Industrial
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Lock Type
Twist-lock
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Insulation
Insulated Body
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Amperage Rating
15 A

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Inlet, 15A 2-Pole 2-Wire NonGrounding, L1-15P, Screw Terminal,White
