  11. Flanged Locking Inlet, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, Black

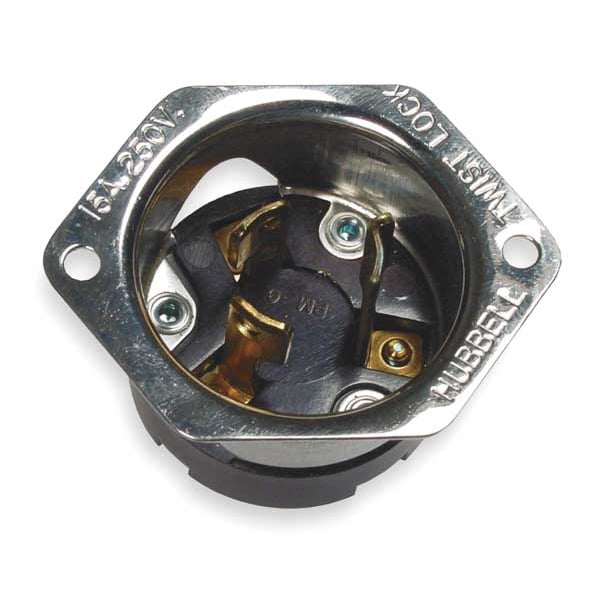

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, Black HBL4586 - main

Flanged Locking Inlet, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, Black

  • Mfr # HBL4586

  • Zoro # G1575996

product price: $34.79
/ea

Key Features

Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL4586
Zoro #
G1575996
UPC #
783585236704
Country of Origin
United States

Dimensions

Minimum Wire Size
18 AWG
Face Plate Height
2.31 in
Face Diameter
1.5 in
Maximum Wire Size
10 AWG
Overall Depth
1.09 in
Wire Size
15A #14 AWG

Details

Item
Locking Plug
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Heat Resistant, Moisture Resistant
Flange Type
Flanged
Material
Stainless Steel
Special Features
With Stainless Steel Plate
Grade
General Use
Mounting Type
Flush Mount
Wiring Style
Standard
Blade Material
Brass
Number of Blades
3
Horsepower Rating
2 hp
Includes Mounting Hardware
Yes
Market
Industrial
For Location
Indoor
Housing Material
Stainless Steel
For Environment
Dry
Flange Material
Stainless Steel
Includes
Mounting Screws
Maximum Operating Temperature
167 Degrees F
NEMA Plug Configuration
L6-15P
Minimum Operating Temperature
-40 Degrees F
Lock Type
Twist-lock
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability
HB or better per UL94/CSA 22.2 No.0.17
NEMA Configuration
L6-15
Amps
15
NEMA Rating
12, 4X
NEMA Receptacle Configuration
L6-15P

Description

Flanged Locking Inlet, Current Rating 15 A, Flange Material Stainless Steel, Housing Color Black, IP Rating IP20, Mount Type Flush, NEMA Enclosure Rating 12, 4X, NEMA Plug Configuration L6-15P, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Heat Resistant, Moisture Resistant, Voltage Rating 250V AC, Wiring Style Standard, Face Diameter 1.5 in, Flange Type Flanged, Grounding Grounded, Horsepower Rating 2 hp, Housing Material Stainless Steel
