  11. Flanged Locking Inlet, 20 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White

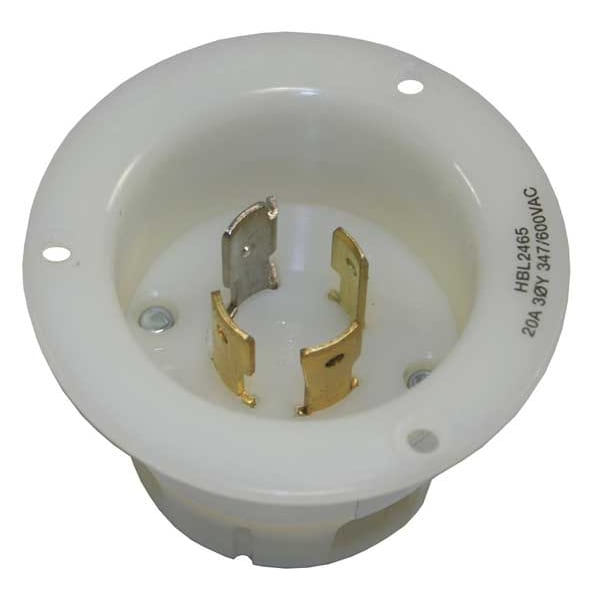

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 20 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White HBL2465 - main

Flanged Locking Inlet, 20 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White

  • Mfr # HBL2465

  • Zoro # G2585007

product price: $43.79
/ea

Key Features

Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2465
Zoro #
G2585007
UPC #
783585038452
Country of Origin
United States

Dimensions

Face Diameter
2.23 in
Face Plate Width
0.09 in
Overall Depth
2.27 in
Flange Diameter
3.06 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#12 AWG; #16 AWG - #8 AWG solid or stranded copper wire only.
Length
3.06 in
Width
3.06 in
Height
2.27 in
Dimensions
3.06 in x 3.06 in x 2.27 in

Details

Item
Locking Plug
Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Non-Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Moisture Resistant
Flange Type
Flanged
Grade
General Use
Wiring Style
Standard
Special Features
With Cover
Material
Nylon
Mounting Type
Flush Mount
Maximum Operating Temperature
167 Degrees F
Number of Blades
4
Includes Mounting Hardware
Yes
For Environment
Dry
Blade Material
Brass
Includes
Mounting Screws
For Location
Indoor
Flange Material
Steel
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
NEMA Plug Configuration
L20-20P
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Market
Industrial
Lock Type
Twist-lock
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability
HB or better per UL94/CSA 22.2 No.0.17
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
20 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Cord Grip Accomodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Insulation
Insulated Body
Application
Extra Heavy Duty Industrial
Material - Mounting Hardware
Screw Mounting
Dielectric Strength
Withstands 2,000V minimum
NEMA Configuration
L20-20
Amps
20
NEMA Rating
12, 4X
NEMA Receptacle Configuration
L20-20P

Description

Flanged Locking Inlet, Current Rating 20 A, Flange Material Steel, Housing Color White, IP Rating IP20, Mount Type Flush, NEMA Enclosure Rating 12, 4X, NEMA Plug Configuration L20-20P, Number of Blades 4, Number of Poles 4, Phase Three, Resistance Properties Moisture Resistant, Voltage Rating 347/600V AC, Wiring Style Standard, Face Diameter 2.23 in, Flange Diameter 3.06 in, Flange Type Flanged, Grounding Non-Grounded, Housing Material Nylon, Includes Mounting Hardware Yes
