  11. Flanged Locking Inlet, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals, White

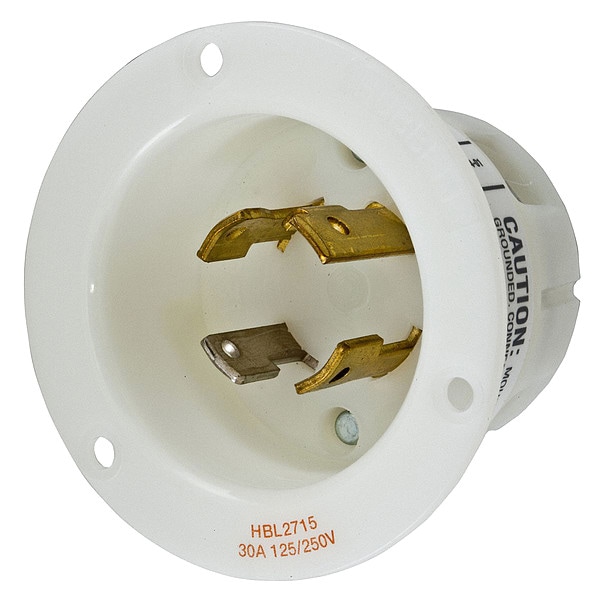

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals, White HBL2715 - main

Flanged Locking Inlet, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals, White

  • Mfr # HBL2715

  • Zoro # G1944652

product price: $62.99
/ea

Key Features

Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2715
Zoro #
G1944652
UPC #
783585039190
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Overall Depth
2.27 in
Face Plate Width
0.09 in
Maximum Wire Size
8 AWG
Flange Diameter
3.06 in
Face Diameter
2.23 in
Wire Size
#10 AWG
Height
2.27 in
Dimensions
3.06 in x 3.06 in x 2.27 in
Length
3.06 in
Width
3.06 in

Details

Item
Locking Plug
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Moisture Resistant
Flange Type
Flanged
Boot Code
E
Wiring Style
Standard
Material
Cast aluminum
Special Features
With Cover
Mounting Type
Flush Mount
Grade
General Use
Housing Material
Nylon
Includes Mounting Hardware
Yes
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Number of Blades
4
Blade Material
Brass
Includes
Mounting Screws
Horsepower Rating
2 hp
NEMA Plug Configuration
L14-30P
Maximum Operating Temperature
167 Degrees F
Flange Material
Nylon
For Location
Indoor
For Environment
Dry
Connection Orientation
Straight
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Terminal Designations
Terminals identified in accordance with UL 498
Lock Type
Twist-lock
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Extra Heavy Duty Industrial
Dielectric Strength
Withstands 2,000V minimum
Insulation
Insulated Body
Amperage Rating
30 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
NEMA Rating
12, 4X
Amps
30
NEMA Configuration
L14-30
NEMA Receptacle Configuration
L14-30P

Description

Flanged Locking Inlet, Current Rating 30 A, Flange Material Nylon, Housing Color White, IP Rating IP20, Mount Type Flush, NEMA Enclosure Rating 12, 4X, NEMA Plug Configuration L14-30P, Number of Blades 4, Number of Poles 3, Phase Single, Resistance Properties Moisture Resistant, Voltage Rating 125/250V AC, Wiring Style Standard, Face Diameter 2.23 in, Flange Diameter 3.06 in, Flange Type Flanged, Grounding Grounded, Horsepower Rating 2 hp, Housing Material Nylon, Includes Mounting Hardware Yes
