Flanged Locking Inlet, 30 A, 125V AC, Screw Terminals, Black
Mfr # ASINL530P-FC
Zoro # G510113143
Key Features
Specifications
Product Information
- MFR #
- ASINL530P-FC
- Zoro #
- G510113143
- UPC #
- 819145022996
- Country of Origin
- Taiwan, Province of China
Details
- Item
- Flanged Locking Inlet
- Current Rating
- 30 A
- Voltage Rating
- 125V AC
- Wire Connection Type
- Screw Terminals
- Housing Color
- Black
- Cover Type
- Flip-Up Cover
- Flange Type
- Flanged
- Standards
- UL, cULus Listed
- Material
- PVC
- Wattage
- 3750W
- Application
- Flanged Inlet Wiring Device
Description

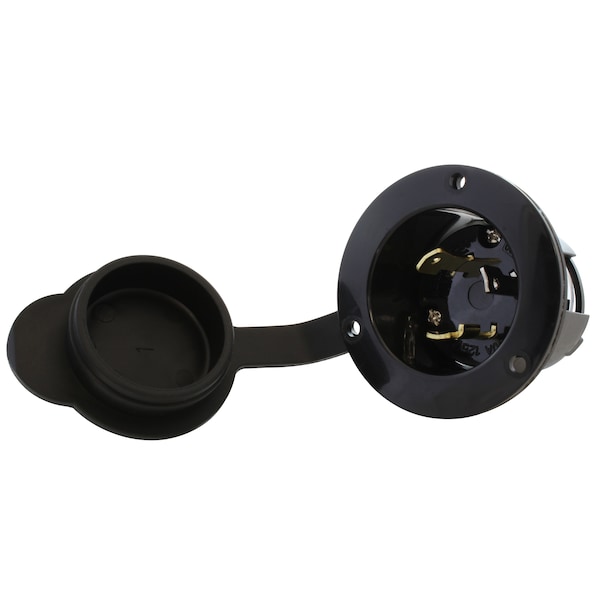

This AC WORKS brand inlet wiring device is a heavy‐duty NEMA L5‐30 power inlet with a weather cover, designed for residential, generator, cabin, and transfer‐switch applications. Built for industrial and commercial‐grade flange‐mount installations, this inlet supports 10 AWG copper wire and provides a secure locking connection for reliable temporary or backup power. The device requires mounting holes with a 2.10" (53.34 mm) to 2.3" (58.42 mm) saw size and includes #2 size screws for installation. It is cULus E237606 listed and backed by a 1‐year limited warranty.
- NEMA L5‐30 30A 125V locking power inlet
- Heavy‐duty flange‐mount design with weather cover
- Works with 10 AWG copper wire
- Fits 2.10"-2.3" mounting hole saw sizes
- cULus E237606 compliant
- Includes #2 size screws
- 1‐year limited warranty
