  11. Flanged Locking Inlet, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White

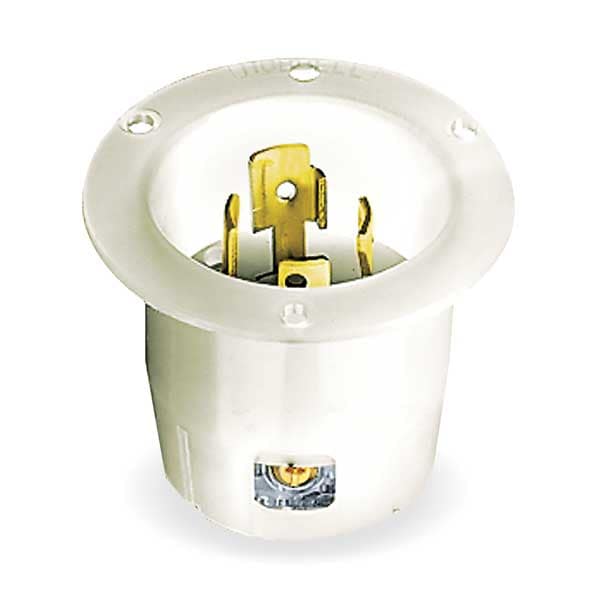

Hubbell Wiring Device-Kellems Flanged Locking Inlet, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White HBL2765 - main

Flanged Locking Inlet, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White

  • Mfr # HBL2765

  • Zoro # G2225352

product price: $69.19
/ea

Key Features

Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2765
Zoro #
G2225352
UPC #
783585039497
Country of Origin
United States

Dimensions

Flange Diameter
3.06 in
Overall Depth
2.27 in
Maximum Wire Size
8 AWG
Face Diameter
2.23 in
Face Plate Width
0.09 in
Minimum Wire Size
16 AWG
Wire Size
#10 AWG
Dimensions
3.06 in x 3.06 in x 2.27 in
Height
2.27 in
Length
3.06 in
Width
3.06 in

Details

Item
Locking Plug
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Non-Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Mounting Type
Flush Mount
Boot Code
E
Material
Nylon
Grade
General Use
Wiring Style
Standard
Special Features
With Cover
For Location
Indoor
Housing Material
Nylon
For Environment
Dry
Maximum Operating Temperature
167 Degrees F
NEMA Plug Configuration
L19-30P
Horsepower Rating
10 hp
Market
Industrial
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Includes
Mounting Screws
Blade Material
Brass
Flange Material
Nylon
Number of Blades
4
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
Lock Type
Twist-lock
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Application
Extra Heavy Duty Industrial
Material - Mounting Hardware
Screw Mounting
Amperage Rating
30 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C. Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Dielectric Strength
Withstands 2,000V minimum
Insulation
Insulated Body
Amps
30
NEMA Rating
12, 4X
NEMA Configuration
L19-30
NEMA Receptacle Configuration
L19-30P

Description

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
• Mounting screws included
