  11. Flanged Locking Inlet, Non-NEMA, 10/15 A, 250V AC, Single Phase, 3 Pole, Screw Terminals

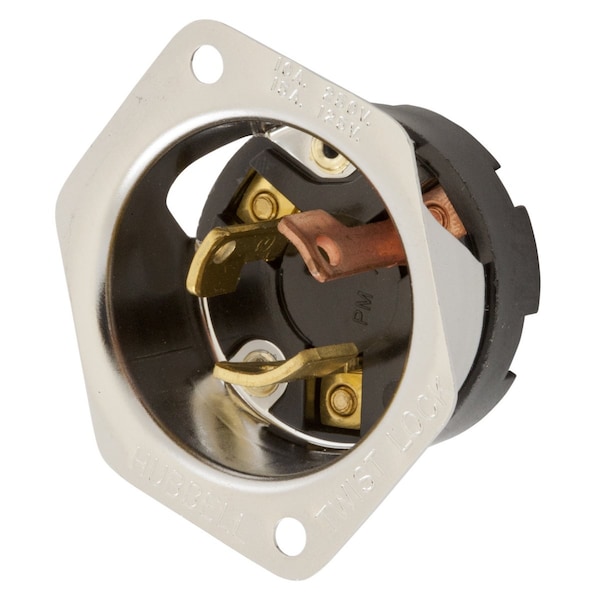

Hubbell Wiring Device-Kellems Flanged Locking Inlet, Non-NEMA, 10/15 A, 250V AC, Single Phase, 3 Pole, Screw Terminals HBL7556 - main

Flanged Locking Inlet, Non-NEMA, 10/15 A, 250V AC, Single Phase, 3 Pole, Screw Terminals

  • Mfr # HBL7556

  • Zoro # G600701090

product price: $45.15
/ea

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
10/15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL7556
Zoro #
G600701090
UPC #
783585237640
Country of Origin
United States

Dimensions

Wire Size
15A #14 AWG
Length
2.31 in
Width
2.31 in
Height
1.13 in
Dimensions
2.31 in x 2.31 in x 1.13 in

Details

Item
Flanged Locking Inlet
NEMA Receptacle Configuration
Non-NEMA
Current Rating
10/15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
Brown, Silver
Cover Type
No Cover
IP Rating
IP20
Standards
Certified for current interrupting at full rated current
Resistance Properties
Heat Resistant, Moisture Resistant
Flange Type
Flanged
Flange Material
.025" Stainless Steel
Wiring Style
Standard
Special Features
Molded In or Stamped On
Material
Nickel plated
Application
Extra Heavy Duty Industrial
Lock Type
Replacement-use
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Terminal Designations
Terminals identified in accordance with UL 498
Dielectric Strength
Withstands 2,000V minimum
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Insulation
Insulated Body
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Mount Type
Screw Mounting

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Inlet, 10A 250V/15A 125V, 3-Pole 3-Wire Non Grounding, Non-NEMA,Screw Terminal, Steel
