  11. Flanged Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, White

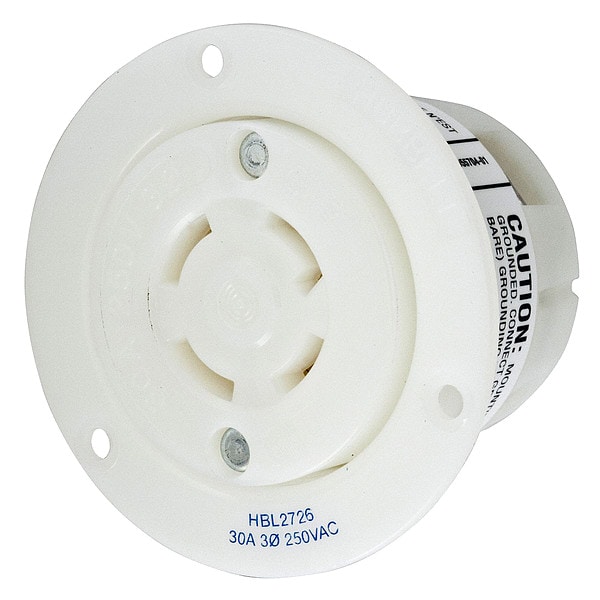

Hubbell Wiring Device-Kellems Flanged Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, White HBL2726 - main

Flanged Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, White

  • Mfr # HBL2726

  • Zoro # G1619231

product price: $72.59
/ea

Key Features

NEMA Receptacle Configuration
L15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2726
Zoro #
G1619231
UPC #
783585039305
Country of Origin
United States

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
16 AWG
Wire Size
#16 AWG - #8 AWG solid or stranded copper wire only.
Width
3.06 in
Length
3.06 in
Height
2.27 in
Dimensions
3.06 in x 3.06 in x 2.27 in

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L15-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Grade
Industrial
Special Features
With Cover
Material
Nylon/Valox
Mounting Type
Flush Mount
Wiring Style
Standard
For Environment
Dry
AFCI
No
For Location
Indoor
Flange Shape
Round
Horsepower Rating
3 hp
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Number of Gangs
1
Polarized
Yes
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Includes
Mounting Screws
Market
Industrial
Contact Material
Brass
Flange Material
Natural White Nylon
Spring Material
Brass
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Lock Type
Twist-lock
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Heavy Duty Industrial
Amperage Rating
30 A
Amps
30

Description

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
• Mounting screws included
