  11. Flanged Locking Receptacle, L23-30R, 30 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, White

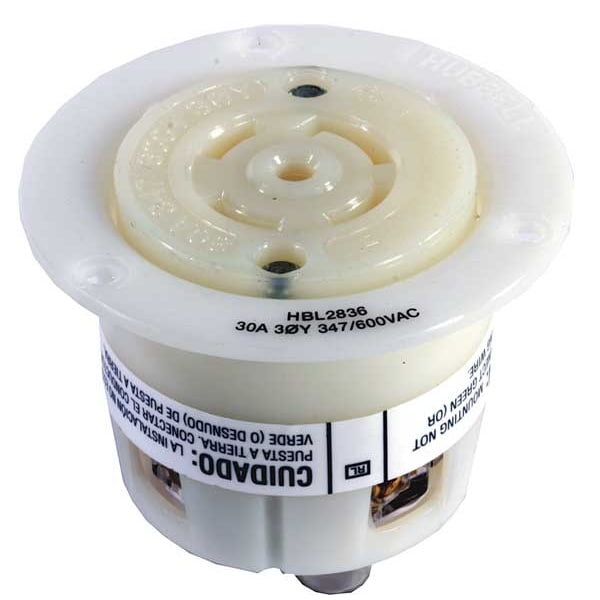

Hubbell Wiring Device-Kellems Flanged Locking Receptacle, L23-30R, 30 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, White HBL2836 - main

Flanged Locking Receptacle, L23-30R, 30 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, White

  • Mfr # HBL2836

  • Zoro # G2584955

product price: $130.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L23-30R
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2836
Zoro #
G2584955
UPC #
783585039763
Country of Origin
United States

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#10 AWG
Width
3.06 in
Dimensions
3.06 in x 3.06 in x 2.27 in
Length
3.06 in
Height
2.27 in

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L23-30R
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Grade
Industrial
Wiring Style
Standard
Special Features
With Cover
Material
Nylon/Polyester
Mounting Type
Flush Mount
Maximum Operating Temperature
167 Degrees F
For Environment
Dry
Market
Industrial
For Location
Indoor
Polarized
Yes
Housing Material
Nylon
Flange Shape
Round
Minimum Operating Temperature
-40 Degrees F
Number of Gangs
1
Contact Material
Brass
Connection Orientation
Straight
Includes Mounting Hardware
Yes
AFCI
No
Includes
Mounting Screws
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Lock Type
Twist-lock
Spring Material
Brass
Flammability
V2 or better per UL94/CSA 22.2 No.0.17
Flange Material
Natural White Nylon
OEM Brand Name
Hubbell Wiring Device-Kellems
Amperage Rating
30 A
Dielectric Strength
Withstands 2,000V minimum
Application
Heavy Duty Industrial
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Material - Mounting Hardware
Screw Mounting
Amps
30

Description

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
• Mounting screws included
