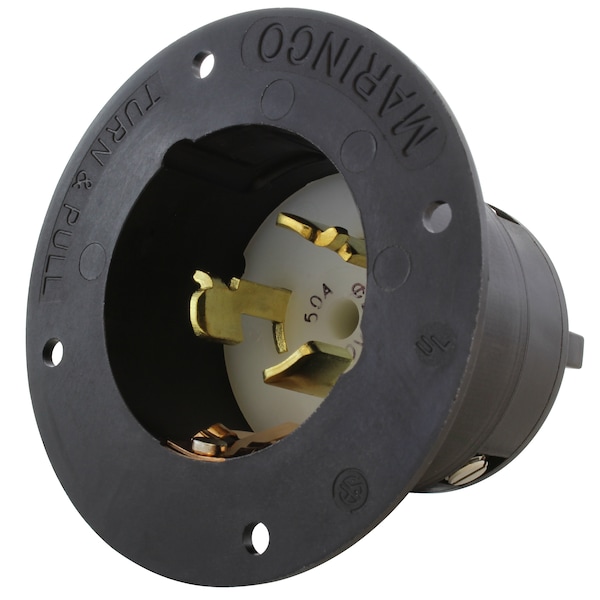

Flanged Locking Inlet, Non-NEMA, 50 A, 480V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals
Mfr # CS8175
Zoro # G110113116
Key Features
Specifications
Product Information
- MFR #
- CS8175
- Zoro #
- G110113116
- UPC #
- 819145029292
- Country of Origin
- Mexico
Details
- Item
- Flanged Locking Inlet
- NEMA Receptacle Configuration
- Non-NEMA
- Current Rating
- 50 A
- Voltage Rating
- 480V AC
- Phase
- Three
- Number of Poles
- 3
- Number of Wires
- 4
- Wire Connection Type
- Screw Terminals
- Grounding
- Grounded
- Housing Color
- Black
- Mount Type
- Flush
- Cover Type
- No Cover
- Flange Type
- Flanged
- Standards
- CSA Certified, UL
- Material
- Nylon
- IP Rating
- IP20
- Wattage
- 41520W
- Application
- Flanged Inlet Wiring Device
- NEMA Enclosure Rating
- 12, 4, 4X
- Shrouded
- No
Description
This AC WORKS brand inlet wiring device (model CS8175) is a heavy‐duty 50‐amp, 480‐volt 3‐phase locking power inlet designed for industrial and commercial flange‐mount applications. Built for demanding environments, this inlet is commonly used for shore power, high‐power equipment, and industrial machinery requiring a secure 3‐phase input connection. The device works with 6 AWG copper wire, providing reliable performance for 50‐amp circuits. It features a rugged housing and thick terminals designed to withstand harsh conditions, impacts, and long‐term industrial use. The inlet supports a maximum operating load of 41,520 watts and is fully compatible with the CS8164 locking connector. This product is UL 309E and CSA 81290 certified and backed by a 1‐year limited warranty.
- NEMA CS8175 50A 480V 3‐phase locking power inlet
- Heavy‐duty industrial and commercial grade construction
- Works with 6 AWG copper wire
- Maximum operating power: 41,520 watts
- Compatible with CS8164 connector
- UL 309E & CSA 81290 certified
- Includes 1‐year limited warranty
