  11. Flanged Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Silver

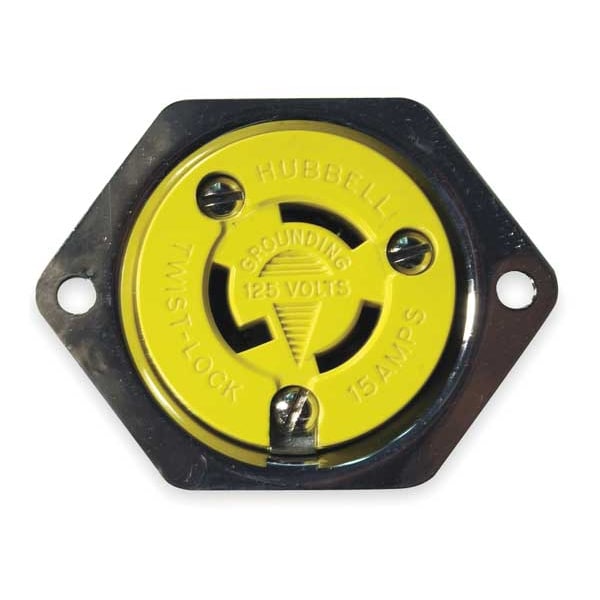

Hubbell Wiring Device-Kellems Flanged Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Silver HBL47CM15 - main

Flanged Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Silver

  • Mfr # HBL47CM15

  • Zoro # G8985767

product price: $51.15
/ea

Key Features

NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL47CM15
Zoro #
G8985767
UPC #
783585237022
Country of Origin
United States

Dimensions

Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Wire Size
15A #14 AWG
Dimensions
2.31 in x 2.31 in x 2.08 in
Length
2.31 in
Width
2.31 in
Height
2.08 in

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
No
Grounding
Grounded
Housing Color
Silver
Mount Type
Flush
Cover Type
No Cover
IP Rating
IP20
NEMA Enclosure Rating
12, 4X
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Corrosion Resistant, Heat Resistant, Moisture Resistant
Flange Type
Flanged
Grade
Marine
Wiring Style
Standard
Mounting Type
Flush Mount
Material
Nylon/Polyester
Special Features
Corrosion resistant
Includes
Mounting Screws
Flange Material
Stainless Steel
AFCI
No
Maximum Operating Temperature
167 Degrees F
For Location
Indoor
Connection Orientation
Straight
Polarized
Yes
For Environment
Dry
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
Number of Gangs
1
Housing Material
Stainless Steel
Includes Mounting Hardware
Yes
Flange Shape
Round
Spring Material
.032" (.8) Bronze
Lock Type
twist-lock
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Application
Marine Wiring Devices
Performance
Electrical-Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Mechanical - Terminal Accommodation - #18 - #10 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Dielectric Strength
Withstands 2,000V minimum
NEMA Rating
12, 4X
Amps
15

Description

Flanged Locking Receptacle, Connection Orientation Straight, Current Rating 15 A, Flange Shape Round, Flange Type Flanged, Housing Color Silver, Housing Material Stainless Steel, Mount Type Flush, NEMA Enclosure Rating 12, 4X, NEMA Receptacle Configuration L5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, AFCI No, Contact Material Brass
