  11. Flanged Locking Receptacle, Non-NEMA, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals

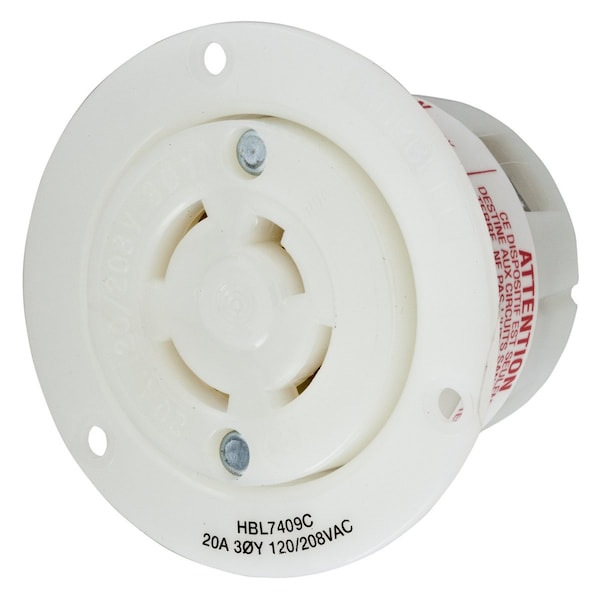

Hubbell Wiring Device-Kellems Flanged Locking Receptacle, Non-NEMA, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals HBL7409C - main

Flanged Locking Receptacle, Non-NEMA, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals

  • Mfr # HBL7409C

  • Zoro # G000702567

product price: $85.85
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7409C
Zoro #
G000702567
UPC #
783585037554
Country of Origin
United States

Dimensions

Wire Size
#12 AWG
Height
2.4 in
Length
3.06 in
Dimensions
3.06 in x 3.06 in x 2.4 in
Width
3.06 in

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
White
Cover Type
No Cover
IP Rating
IP20
Standards
Certified for current interrupting at full rated current, UL
Resistance Properties
Impact Resistant, Moisture Resistant
Flange Type
Flanged
Flange Material
Natural White Nylon
Special Features
Molded In or Stamped On
Wiring Style
Standard
Material
Nickel-plated Brass Round head screws
Application
Insulgrip
Lock Type
Twist-lock
Spring Material
Brass
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating
20 A
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Mount Type
Screw Mounting

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Flanged Receptacle, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, Non-NEMA, Screw Terminal, White
