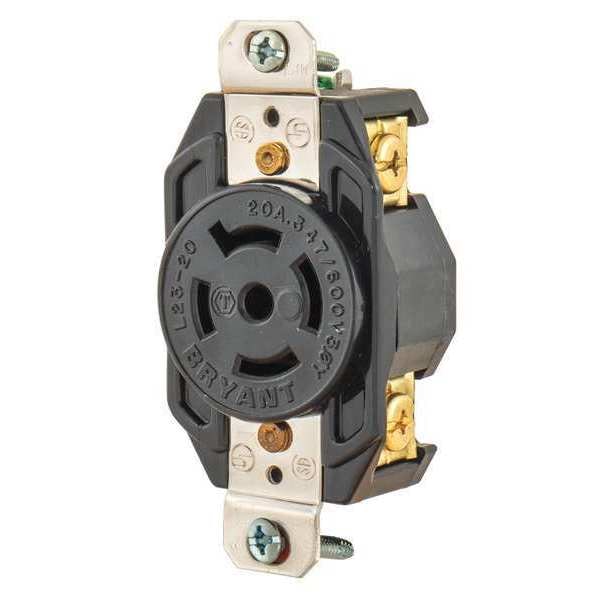

Locking Receptacle, L23-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals

  • Mfr # 72320FR

  • Zoro # G4571616

product price:
$
43.80
/ea

Key Features

NEMA Receptacle Configuration
L23-20R
Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
72320FR
Zoro #
G4571616
UPC #
781786702639
Country of Origin
United States
Item
Locking Receptacle
NEMA Receptacle Configuration
L23-20R
Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
UL 498
Resistance Properties
Corrosion Resistant
Grade
Industrial
Mounting Type
Flush Mount
Wiring Style
Standard
Material
Nylon
Includes Mounting Hardware
Yes
Polarized
Yes
Housing Material
Nylon
For Location
Indoor
Market
Industrial
Shrouded
No
For Environment
Dry
Contact Material
Copper Alloy
Includes
Mounting Hardware
Material - Mounting Hardware
Screw Mounting
Style
Single Receptacle
Features
Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors; Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly; NEMA rating and configuration are molded into face for easy identification; One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
Amperage Rating
20 A
Application
Extra Heavy Duty Industrial Specification Grade
Amps
20
Series
Twist Lock
Number of Outlets
1
Number of Gangs
1
Hub Type
Dead End
IP Rating
Not Rated
Midget Locking
No
Flange Material
Composite
NEMA Enclosure Rating
Not Rated
Horsepower Rating
1 hp
Connection Orientation
Straight

Description

Locking Receptacle, Current Rating 20 A, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Receptacle Configuration L23-20R, Number of Poles 4, Number of Wires 5, Phase Three, Polarized Yes, Shrouded No, Voltage Rating 347/600V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Copper Alloy, Grade Industrial, Grounding Grounded
