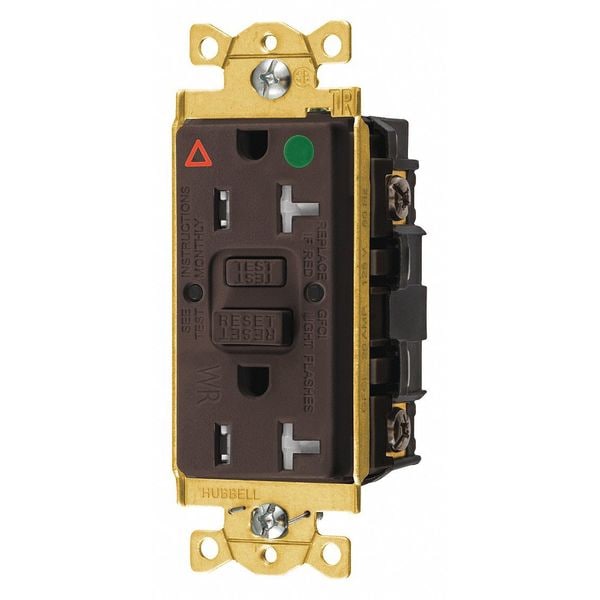

Hubbell Wiring Device-Kellems GFCI Rceptcle, Hspital, Brwn, 20A, 1 HP GFTWRST83IG - main

GFCI Rceptcle, Hspital, Brwn, 20A, 1 HP

  • Mfr # GFTWRST83IG

  • Zoro # G4843137

product price: $93.35
/ea
Free Shipping & Returns

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTWRST83IG
Zoro #
G4843137
UPC #
883778122545
Country of Origin
China

Dimensions

Face Plate Width
1.8 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Isolated Grounding
Housing Color
Brown
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Power Indicator
Yes
Weather Resistant
Yes
Reset Type
Automatic
Self-Testing
Yes
Color - Plugs and Receptacles
Brown
Item - Plugs and Receptacles
Isolated Ground Receptacle
NEMA Configuration
5-20
HP
1 hp
Outlet Type - Plugs and Receptacles
Decorator Duplex
Weather Resistant - Plugs and Receptacles
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Amps
20A
Amps - Plugs and Receptacles
20
Voltage - Plugs and Receptacles
125V AC
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
Color
Brown
Outlet Type
Decorator
Wiring Method
Back, Side
Application Environment
Heavy Use Hospital Grade
Voltage
125VAC
Tamper Resistant
Yes
Amps - Plugs and Receptacles
20 A
Special Features
Isolated Ground
Shrouded
No
Market
Commercial
Number of Gangs
1
Grade
Hospital Grade
Surge Protection
No
Wire Connection Type
Screw Terminals
Resistance Properties
Tamper Resistant, Weather Resistant
Includes
Mounting Hardware
Mount Type
Flush
Includes Mounting Hardware
Yes
Horsepower Rating
1 hp
Voltage Rating
125V AC
Receptacle Type
Duplex
Flange Type
Non-Flanged
Features
Tamper and Weather Resistant Isolated Ground
Self Testing
Yes
Contact Material
Brass
AFCI
No
Type
Weather Resistant
Style
Standard
Voltage Rating Description
125 V
Industry Standard(s)
Meets All NEC® Requirements
Current / Amperage Rating
20 A
Nema Rating
5-20R
Series
Heavy Duty
Amperage Rating
20 A

Description

AUTOGUARD® Self Test Technology 1st introduced by Hubbell over 10 years ago...self test monitoring now required in 2015 UL 943 GFCI Safety Standard... Hubbell AUTOGUARD® GFCI receptacles continually test and monitor for “people protection capability” automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.
• Patented shutter design for tamper-resistant protection
• Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications
• Patented AUTOGUARD® self test technology
• Protects against line and load reversal, no power to the face or downstream if device is miswired
