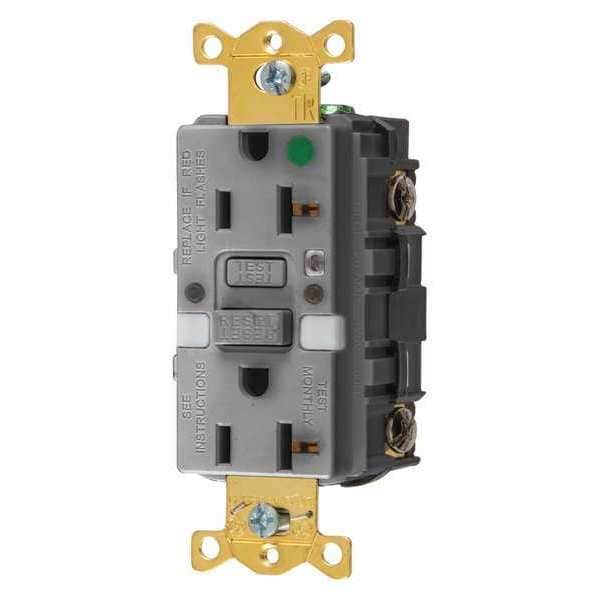

Hubbell Wiring Device-Kellems GFCI Rceptcle, Hspital, Gr, 20A, 1 HP GFTRST83GYNL - main

GFCI Rceptcle, Hspital, Gr, 20A, 1 HP

  • Mfr # GFTRST83GYNL

  • Zoro # G4843030

product price: $85.95
/ea
Free Shipping & Returns

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTRST83GYNL
Zoro #
G4843030
UPC #
783585486161
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Face Plate Width
1.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Gray
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Weather Resistant - Plugs and Receptacles
No
Reset Type
Automatic
HP
1 hp
Voltage - Plugs and Receptacles
125V AC
Amps
20A
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Self-Testing
Yes
Outlet Type - Plugs and Receptacles
Decorator Duplex
Wiring Method
Back, Side
Tamper Resistant
Yes
Amps - Plugs and Receptacles
20
Amps - Plugs and Receptacles
20 A
Mounting Type - Plugs and Receptacles
Flush
Special Features
Nightlight
Item - Plugs and Receptacles
Receptacle
NEMA Configuration
5-20
Outlet Type
Decorator
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Heavy Use Hospital Grade
Color - Plugs and Receptacles
Gray
Weather Resistant
No
Voltage
125VAC
Color
Gray
Power Indicator
Yes
Surge Suppression
No
Mount Type
Flush
Flange Type
Non-Flanged
Includes Mounting Hardware
Yes
Market
Commercial
AFCI
No
Self Testing
Yes
Voltage Rating
125V AC
Surge Protection
No
Number of Gangs
1
Features
Night Light
Contact Material
Brass
Includes
Mounting Hardware
Resistance Properties
Tamper Resistant
Grade
Hospital Grade
Receptacle Type
Duplex
Wire Connection Type
Screw Terminals
Horsepower Rating
1 hp
Shrouded
No
Type
Tamper-Resistant
Style
Nightlight
Industry Standard(s)
Meets All NEC® Requirements
Nema Rating
5-20R
Voltage Rating Description
125 V
Series
Hospital Grade
Current / Amperage Rating
20 A

Description

AUTOGUARD® Self Test Technology 1st introduced by Hubbell over 10 years ago...self test monitoring now required in 2015 UL 943 GFCI Safety Standard... Hubbell AUTOGUARD® GFCI receptacles continually test and monitor for “people protection capability” automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.
•
