  11. GFCI Rceptcle, Hspital, Red, 20A, 1 HP
Hubbell Wiring Device-Kellems GFCI Rceptcle, Hspital, Red, 20A, 1 HP SNAPGF83R - main

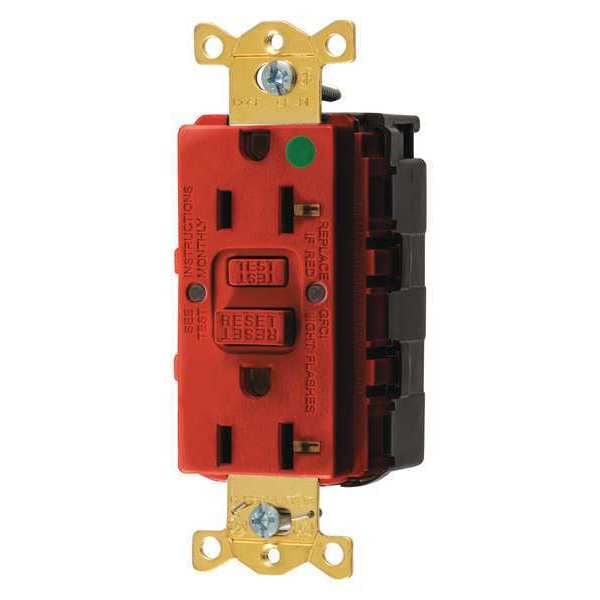

GFCI Rceptcle, Hspital, Red, 20A, 1 HP

  • Mfr # SNAPGF83R

  • Zoro # G4885170

product price: $66.99
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAPGF83R
Zoro #
G4885170
UPC #
783585486239
Country of Origin
China

Dimensions

Face Plate Width
1.8 in
Overall Depth
1.5 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
12 AWG
Wire Size
#12 AWG
Height
1.47 in
Dimensions
3.28 in x 1.77 in x 1.47 in
Width
1.77 in
Length
3.28 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Red
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Material
Nylon
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Color
Red
Application Environment
Heavy Use Hospital Grade
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Item - Plugs and Receptacles
Receptacle
HP
1 hp
Tamper Resistant
No
Amps - Plugs and Receptacles
20
Special Features
Ground Fault Indicator
Color - Plugs and Receptacles
Red
Outlet Type - Plugs and Receptacles
Decorator Duplex
Amps - Plugs and Receptacles
20 A
Voltage - Plugs and Receptacles
125V AC
Surge Suppression
No
Voltage
125VAC
Wiring Method
Back
Wiring Method - Plugs and Receptacles
Modular
Weather Resistant
No
Amps
20A
Power Indicator
Yes
Reset Type
Automatic
Weather Resistant - Plugs and Receptacles
No
Outlet Type
Decorator
Mounting Type - Plugs and Receptacles
Flush
NEMA Configuration
5-20
Self-Testing
Yes
Voltage Rating
125V AC
Includes Mounting Hardware
Yes
Surge Protection
No
Grade
Hospital Grade Fed. Spec.
Receptacle Type
Decorator Duplex
Includes
Mounting Hardware, Wall Plate
Mount Type
Flush
Contact Material
Brass
Features
SnapConnect
Shrouded
No
Flange Type
Non-Flanged
Horsepower Rating
1 hp
Market
Commercial
Number of Gangs
1
Self Testing
Yes
Hub Type
Feed Through
Wire Connection Type
Modular Wiring
AFCI
No
Type
Standard
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
Meets All NEC® Requirements
Current / Amperage Rating
15 A
Style
Standard
Amperage Rating
15 A
Nema Rating
5-15R
Application
Commercial Hospital Grade
Series
Hospital Grade
Wattage
1875 W
Item Type
Self test GFCI receptacle
Horsepower - Maximum
0.5
Voltage Rating Description
125 V

Description

AUTOGUARD® Self Test Technology 1st introduced by Hubbell over 15 years ago...self test monitoring now required in UL 943 GFCI Safety Standard... Hubbell AUTOGUARD® GFCI receptacles continually test and monitor for “people protection capability” automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, a clear visual indicator is provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.
• Audible SNAP, indicates solid connection
• Patented AUTOGUARD® self test technology
• Triple wipe construction
• Patented AUTOGUARD® Self-Test technology
• Protects against line and load reversal, no power to the face or downstream if device is miswired
