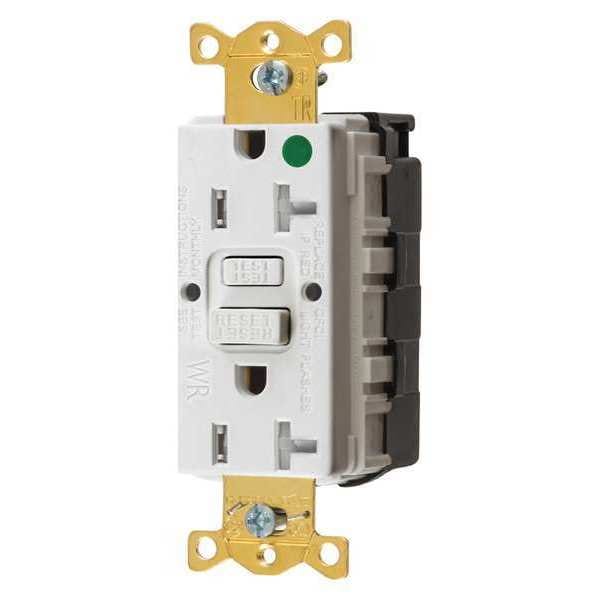

Hubbell Wiring Device-Kellems GFCI Rceptcle, Hspital, Wht, 20A, 1 HP SNAPGFTW83W - main

GFCI Rceptcle, Hspital, Wht, 20A, 1 HP

  • Mfr # SNAPGFTW83W

  • Zoro # G4843408

product price: $70.57
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAPGFTW83W
Zoro #
G4843408
UPC #
883778124167
Country of Origin
China

Dimensions

Maximum Wire Size
12 AWG
Overall Depth
1.5 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
White
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Application Environment
Heavy Use Hospital Grade
Reset Type
Automatic
Power Indicator
Yes
Special Features
Ground Fault Indicator
NEMA Configuration
5-20
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
Yes
Outlet Type
Decorator
Weather Resistant
Yes
Wiring Method
Back
Voltage - Plugs and Receptacles
125V AC
Amps - Plugs and Receptacles
20
Item - Plugs and Receptacles
Receptacle
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Self-Testing
Yes
Amps - Plugs and Receptacles
20 A
Amps
20A
Voltage
125VAC
Wiring Method - Plugs and Receptacles
Modular
Outlet Type - Plugs and Receptacles
Decorator Duplex
Color
White
Tamper Resistant
Yes
Color - Plugs and Receptacles
White
HP
1 hp
Mounting Type - Plugs and Receptacles
Flush
Shrouded
No
Voltage Rating
125V AC
Hub Type
Feed Through
Resistance Properties
Tamper Resistant, Weather Resistant
Features
Tamper and Weather Resistant SnapConnect
Number of Gangs
1
Horsepower Rating
1 hp
Contact Material
Brass
Mount Type
Flush
Includes
Mounting Hardware, Wall Plate
Receptacle Type
Decorator Duplex
AFCI
No
Grade
Hospital Grade
Market
Commercial
Wire Connection Type
Modular Wiring
Includes Mounting Hardware
Yes
Surge Protection
No
Self Testing
Yes
Flange Type
Non-Flanged
Type
Standard
Current / Amperage Rating
15 A
Voltage Rating Description
125 V
Series
Heavy Duty
Industry Standard(s)
Meets All NEC® Requirements
Style
Assembled In USA
Nema Rating
5-15R

Description

The HUBBELL GFCI Receptacle is a hospital grade, rated for commercial applications requiring ground fault protection. It features AUTOGUARD® self-test technology performs periodic monitoring of receptacle functionality and will disconnect power when specified conditions are met. The device includes tamper-resistant shutters; weather resistant construction, and visual indicators display status information including power presence and trip condition notifications.


Key Features of the HUBBELL GFCI Receptacle:

  • Amperage/Voltage: Rated for 20A at 125V AC; supports up to 1 HP loads

  • Grade: Hospital grade construction intended for demanding environments

  • Self-Testing: Integrated AUTOGUARD® self-test function with a test cycle approximately every 30 seconds

  • Tamper & Weather Resistant: Shutter design meets NEC requirements (TR406.12/WR406.9); housing provides UV and corrosion resistance

  • NEMA Configuration: 5-20R decorator duplex outlet with flush mount installation

  • Wiring Method: Modular back wiring accepts up to 12 AWG wire size

  • Status Indicators: Visual indicators provide information on device operation including power presence and trip events

  • Reverse Wiring Protection: Power denied to face or downstream if line/load connections are reversed

  • Includes mounting hardware and wall plate; housing made from nylon material; grounded design with two poles and three wires
