  11. GFCI Receptacle, 15A, 125VAC, 5-15R, Black

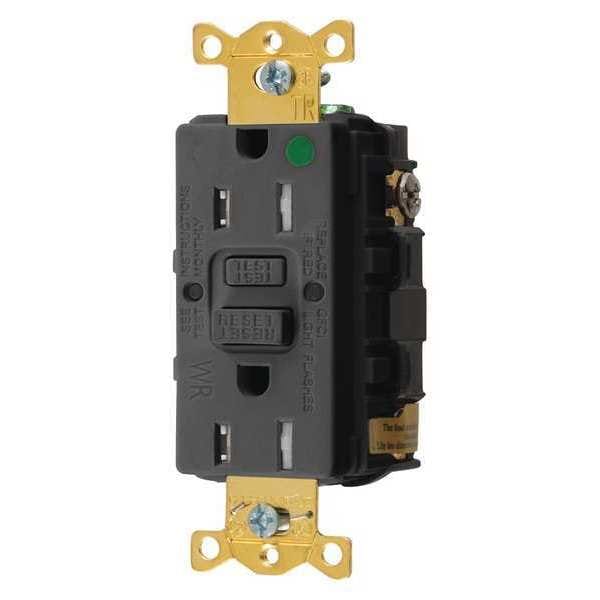

Hubbell Wiring Device-Kellems GFCI Receptacle, 15A, 125VAC, 5-15R, Black GFRTW82BLK - main

GFCI Receptacle, 15A, 125VAC, 5-15R, Black

  • Mfr # GFRTW82BLK

  • Zoro # G0087836

product price: $69.80
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFRTW82BLK
Zoro #
G0087836
UPC #
783585485270
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.5 in
Face Plate Width
1.8 in
Face Plate Height
2.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Black
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Wiring Method - Plugs and Receptacles
Back and Side
Self-Testing
Yes
Outlet Type
Decorator
HP
0.5 hp
Weather Resistant - Plugs and Receptacles
Yes
Application Environment
Heavy Use Hospital Grade
Wiring Method
Back, Side
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Item - Plugs and Receptacles
Receptacle
Amps - Plugs and Receptacles
15 A
Power Indicator
No
Reset Type
Automatic
Tamper Resistant
Yes
NEMA Configuration
5-15
Voltage
125VAC
Weather Resistant
Yes
Outlet Type - Plugs and Receptacles
Decorator Duplex
Color - Plugs and Receptacles
Black
Voltage - Plugs and Receptacles
125V AC
Amps
15A
Color
Black
Mount Type
Flush
Surge Protection
No
Grade
Hospital Grade
Market
Commercial
Contact Material
Brass
Self Testing
Yes
AFCI
No
Resistance Properties
Tamper Resistant, Weather Resistant
Wire Connection Type
Screw Terminals
Shrouded
No
Voltage Rating
125V AC
Receptacle Type
Duplex
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection, Tamper Resistant, Weatherproof
Includes
Mounting Hardware
Horsepower Rating
1/2 hp
Number of Gangs
1
Flange Type
Non-Flanged
Includes Mounting Hardware
Yes
Type
Tamper-Resistant, Weather Resistant
Nema Rating
5-15R
Series
Hospital Grade
Industry Standard(s)
Meets All NEC® Requirements
Current / Amperage Rating
15 A
Style
Standard
Voltage Rating Description
125 V

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Weather Resistant, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
