  11. GFCI Receptacle, 15A, 125VAC, 5-15R, Brown

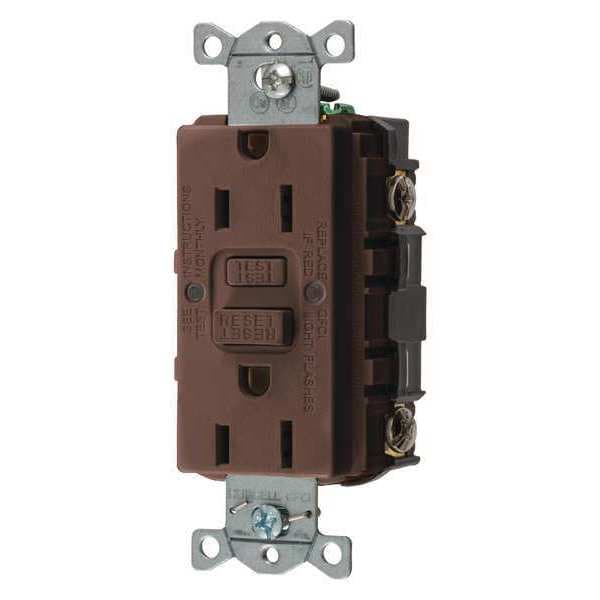

Hubbell Wiring Device-Kellems GFCI Receptacle, 15A, 125VAC, 5-15R, Brown GFR15 - main

GFCI Receptacle, 15A, 125VAC, 5-15R, Brown

  • Mfr # GFR15

  • Zoro # G0088116

product price: $24.91
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFR15
Zoro #
G0088116
UPC #
883778122040
Country of Origin
China

Dimensions

Face Plate Width
1.8 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Brown
Housing Material
Nylon (Face)
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Color - Plugs and Receptacles
Brown
Self-Testing
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Outlet Type - Plugs and Receptacles
Decorator Duplex
Application Environment
Industrial
Outlet Type
Decorator
Item - Plugs and Receptacles
Receptacle
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
No
Amps
15A
Amps - Plugs and Receptacles
15 A
Wiring Method
Back, Side
Reset Type
Automatic
Amps - Plugs and Receptacles
15
NEMA Configuration
5-15
Color
Brown
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
No
Weather Resistant
No
Voltage
125VAC
Tamper Resistant
No
HP
0.5 hp
Mounting Type - Plugs and Receptacles
Flush
Voltage - Plugs and Receptacles
125V AC
Flange Type
Non-Flanged
Contact Material
Brass
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection
Voltage Rating
125V AC
Receptacle Type
Duplex
Surge Protection
No
Mount Type
Flush
Includes
Mounting Hardware
Wire Connection Type
Screw Terminals
Number of Gangs
1
Self Testing
Yes
Market
Commercial, Industrial
Shrouded
No
AFCI
No
Horsepower Rating
1/2 hp
Grade
General Use
Includes Mounting Hardware
Yes
Type
Standard
Amperage Rating
15 A
Series
Heavy Duty
Current / Amperage Rating
15 A
Industry Standard(s)
Meets All NEC® Requirements
Nema Rating
5-15R
Style
Standard
Voltage Rating Description
125 V

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Brown, Housing Material Nylon (Face), Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, AFCI No, Horsepower Rating 1/2 hp
