  11. GFCI Receptacle, 15A, 125VAC, 5-15R, Ivory
Hubbell Wiring Device-Kellems GFCI Receptacle, 15A, 125VAC, 5-15R, Ivory GFR15I - main

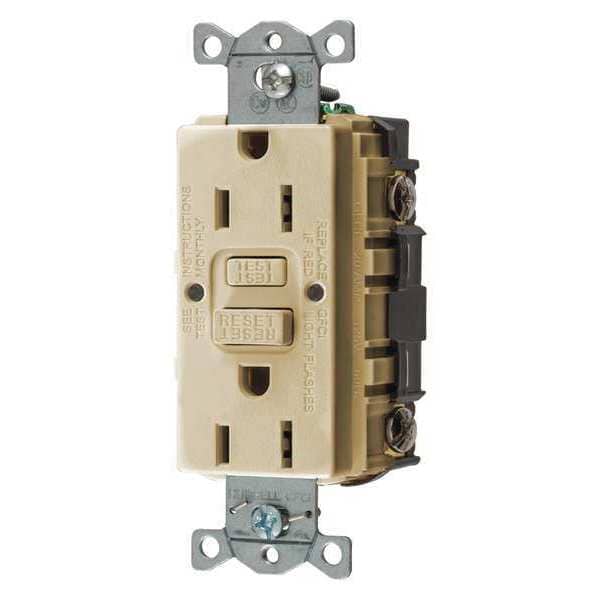

GFCI Receptacle, 15A, 125VAC, 5-15R, Ivory

  • Mfr # GFR15I

  • Zoro # G0088125

product price: $24.91
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFR15I
Zoro #
G0088125
UPC #
883778122033
Country of Origin
China

Dimensions

Face Plate Width
1.8 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Ivory
Housing Material
Nylon (Face)
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
NEMA Configuration
5-15
Color - Plugs and Receptacles
Ivory
Weather Resistant
No
Amps - Plugs and Receptacles
15
Mounting Type - Plugs and Receptacles
Flush
Application Environment
Industrial
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Back and Side
Surge Suppression
No
Wiring Method
Back, Side
Voltage - Plugs and Receptacles
125V AC
Outlet Type - Plugs and Receptacles
Decorator Duplex
Power Indicator
No
Self-Testing
Yes
HP
0.5 hp
Color
Ivory
Weather Resistant - Plugs and Receptacles
No
Amps - Plugs and Receptacles
15 A
Amps
15A
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Item - Plugs and Receptacles
Receptacle
Outlet Type
Decorator
Reset Type
Automatic
Mount Type
Flush
Grade
General Use
Includes Mounting Hardware
Yes
Flange Type
Non-Flanged
Number of Gangs
1
Surge Protection
No
Includes
Mounting Hardware
Receptacle Type
Duplex
Horsepower Rating
1/2 hp
Wire Connection Type
Screw Terminals
Contact Material
Brass
Self Testing
Yes
Market
Commercial, Industrial
Voltage Rating
125V AC
AFCI
No
Shrouded
No
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection
Type
Standard
Series
Heavy Duty
Industry Standard(s)
Meets All NEC® Requirements
Current / Amperage Rating
15 A
Amperage Rating
15 A
Style
Standard
Nema Rating
5-15R
Voltage Rating Description
125 V

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Housing Color Ivory, Housing Material Nylon (Face), Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, AFCI No, Horsepower Rating 1/2 hp
