Shop LEGRAND

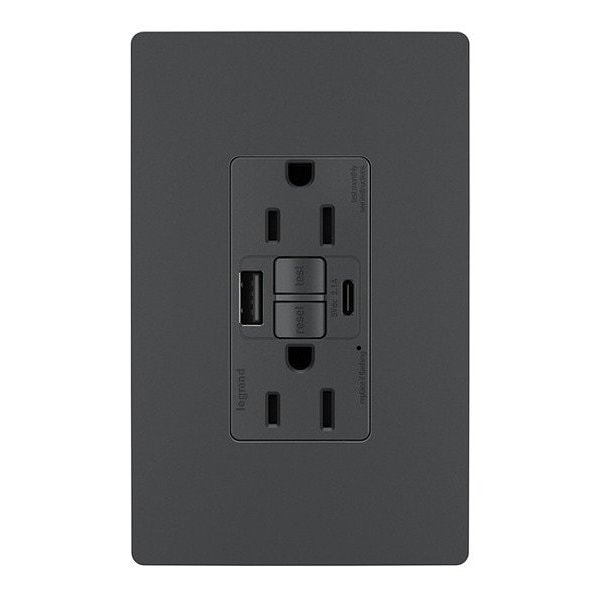

GFCI-USB, 20 A, 125V AC, Black, Plastic

  • Mfr # 2097NTLTRBK

  • Zoro # G522785208

product price:
$
39.35
/ea

Key Features

Minimum Operating Temperature
-35 Degrees C
Surge Protection
No
Mount Type
Flush
Contact Material
Brass
Grounding
Grounded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2097NTLTRBK
Zoro #
G522785208
UPC #
785007378016
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Face Plate Height
2.7 in
Overall Depth
1 in
Face Plate Width
1.7 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Width
0.9 in

Details

Minimum Operating Temperature
-35 Degrees C
Surge Protection
No
Mount Type
Flush
Contact Material
Brass
Grounding
Grounded
Housing Material
Plastic
Polarized
No
Shrouded
No
Number of Outlets
2
Features
Complete the Look with a Sleek, Screwless Radiant(R) Wall Plate, and Coordinate with Other Designer Switches and Outlets Available from the Radiant(R) Collection, Features Durable, High-Impact Resistant Thermoplastic Construction, Hidden Sensor Controls Night Light Based on Ambient Light, Automatically Turning On When it is Dark, More Color Options Available to Fit Any Style, Protects Against Shock Caused by Ground-Fault Occurrences, Protects Children with a Patented Tamper-Resistant Shutter System that Prevents Improper Insertion of Foreign Objects, Complete with "Invisi-Shutters" for an Invisible Effect, Replaces Any Standard Outlet with Ease, in as Little as 10 Minutes, Unlike Breaker Alternatives, GFCI Outlets Make it Easier to Fix Trips with a Convenient Reset Button on the Outlet
Receptacle Type
Duplex
Item
GFCI-USB
Voltage Rating
125V AC
Resistance Properties
Tamper Resistant
Market
Commercial
Phase
Single
Maximum Operating Temperature
66 Degrees C
Number of Wires
3
Housing Color
Black
Cover Type
No Cover
Includes
Wall Plate
For Location
Indoor
UL 94 Flammability Rating
V-2
Number of Poles
2
Hub Type
Feed Through
Standards
cULus, UL Listed
NEMA Enclosure Rating
5
Wire Connection Type
Screw Terminals
Grade
General Use
IP Rating
Not Rated
Flange Type
Non-Flanged
Number of Gangs
1
Current Rating
20 A
NEMA Receptacle Configuration
5-20R
Series
Radiant(R)
Number of Wall Plates Included
0
GFCI
Yes
Wiring Method
Back/Side
AFCI
No

Description

GFCI-USB, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Plastic, Mount Type Flush, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards cULus, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
