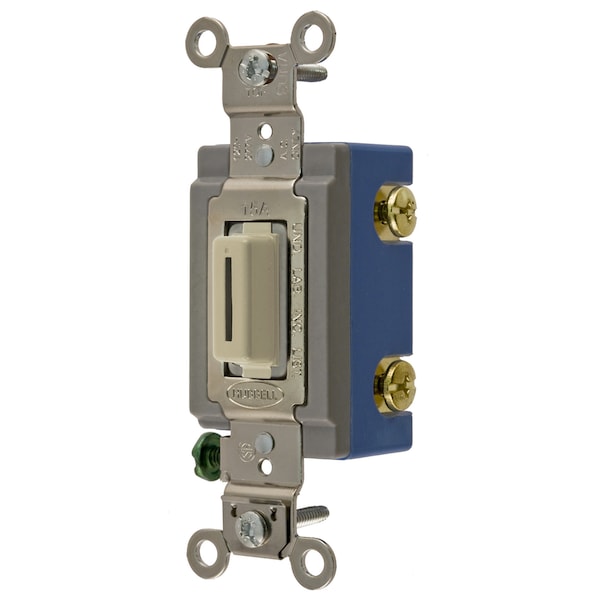

Hubbell Wiring Device-Kellems HBL Extra Heavy Duty Industrial Locking Switch HBL1201LI - main

HBL Extra Heavy Duty Industrial Locking Switch

  • Mfr # HBL1201LI

  • Zoro # G700701914

product price: $31.30
/ea

Key Features

Color
Ivory
Type
Locking
Style
Single Pole
Voltage Rating
120-277 VAC
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1201LI
Zoro #
G700701914
UPC #
783585188447
Country of Origin
China

Dimensions

Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.13 in

Details

Color
Ivory
Type
Locking
Style
Single Pole
Voltage Rating
120-277 VAC
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Carton Quantity
10
Application
Back and Side Wired
Series
Extra Heavy Duty
Connectivity
Back and Side Wired
Temp. Rise
30°C maximum at rated current
Amperage
15 A
Current Rating
15 A
Number Of Poles
Single Pole
Max. Working Voltage
277V AC
Ground Screw
Brass (Green)
Temperature Rise
30°C maximum at rated current
Terminal Screws
Brass
Overload
Minimum 4.8 times rated current for 100 cycles
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Flammability
UL 94V-2
Top Material
Thermoset
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Continuous Current
15A
Key Guide
Metallic, Ivory
Base Material
Thermoset, Blue
Contacts
Silver Alloy

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, LockingIndustrial Grade, Toggle Switches, General Purpose AC, Locking SinglePole, 15A 120/277V AC, Back and Side Wired, Ivory Key Guide, Packed withKey
