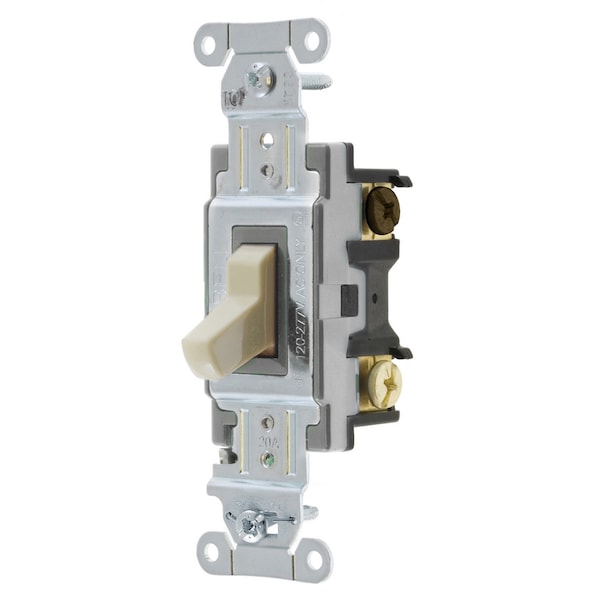

Hubbell Wiring Device-Kellems Specification Grade Commercial Switch CSB420I - main

Specification Grade Commercial Switch

  • Mfr # CSB420I

  • Zoro # G500701763

product price:  $22.65
/ea

Key Features

Switch Type
Four Way
Color
Ivory
Type
Toggle
Voltage
120/277V AC
Style
Four Way
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CSB420I
Zoro #
G500701763
UPC #
783585154312
Country of Origin
China

Dimensions

Wire Size
#14 AWG to #10 AWG
Dimensions
4.18 in x 1.49 in x 1.83 in

Details

Item
Four Way Commercial Toggle Switch
Switch Type
Four Way
Color
Ivory
Type
Toggle
Voltage
120/277V AC
Style
Four Way
Series
General Purpose
Current Rating
20 A
Temp. Rise
30°C maximum at rated current
Number Of Poles
Double Pole
Voltage Rating
120-277 VAC
Carton Quantity
10
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Action
DPDT
Connectivity
Back and Side Wired
Amperage
20 A
Max. Continuous Current
20A
Overload
Minimum 4.8 times rated current for 100 cycles
Wiring Style
Back and Side Wired
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Temperature Rise
30°C maximum at rated current
Switch Grade
Specification Grade
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Product Type
Toggle-switches
Switch Handle Positions
2
Max. Working Voltage
277V AC
Flammability
UL 94V-2
Toggle Color
Ivory

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Four Way, 20A 120/277V AC, Back and SideWired, Ivory
