  11. Illuminated Wall Switch, 1-Pole, 20A, Red

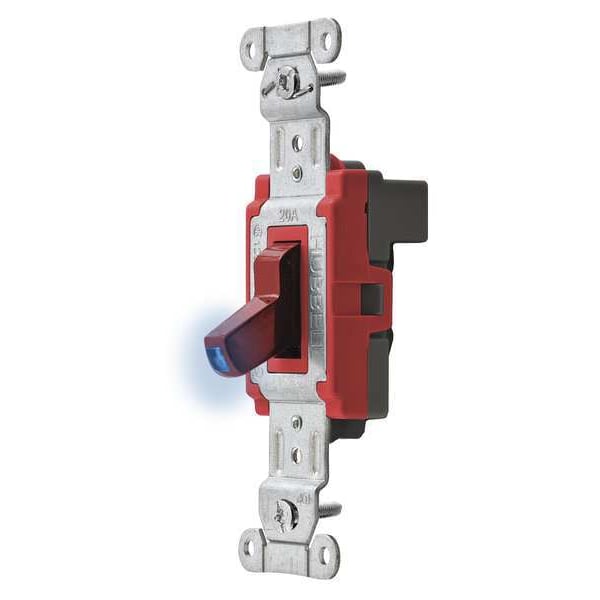

Hubbell Wiring Device-Kellems Illuminated Wall Switch, 1-Pole, 20A, Red SNAP1221ILR - main

Illuminated Wall Switch, 1-Pole, 20A, Red

  • Mfr # SNAP1221ILR

  • Zoro # G4525464

product price: $22.95
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Red
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1221ILR
Zoro #
G4525464
UPC #
783585189406
Country of Origin
United States

Dimensions

Overall Width
1.3 in
Overall Height
1.7 in
Length
4.18 in
Height
1.74 in
Width
1.3 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Illuminated Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Red
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Antimicrobial
No
Standards
UL Listed
Description/Special Features
Light On with Load Off
Rated HP
1 to 2
Minimum Operating Temperature
-40 Degrees F
Voltage Rating
120/277V AC
Market
Industrial
Number of Switches
1
Current Rating
20 A
Housing Material
Thermoplastic
Wire Connection Type
Modular Wiring
Illumination Type
Illuminated
For Market
Industrial Grade
Resistance Properties
Impact Resistant
Horsepower Rating
2 hp
Maximum Operating Temperature
167 Degrees F
Wire Connection Types
Snap-In Module
Illuminated
Yes
Type
Toggle
Style
Single Pole
Terminals
Brass
Flammability
UL 94V-2
Toggle Color
Red
Toggle Material
Thermoplastic
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Temperature Rise
30°C maximum at rated current
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Continuous Current
20A
Contacts
Silver Alloy
Max. Working Voltage
277V AC
Overload
Minimum 4.8 times rated current for 100 cycles
Terminal Accommodations
Uses SNAPConnect Connector
Top Material
Thermoplastic, Red
Base Material
Thermoplastic, Black
Item Type
Single Pole Illuminated Toggle Switch
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Current / Amperage Rating
20 A
Number Of Poles
Single Pole
Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Material
Thermoplastic
Indicator(s) Type
Blue LED
Series
Illuminated
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current
Indicator
Light On with Load Off

Description

Illuminated Wall Switch, Color Red, Current Rating 20 A, Illuminated Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
