  11. Illuminated Wall Switch, 3-Way, 20A, Ivory

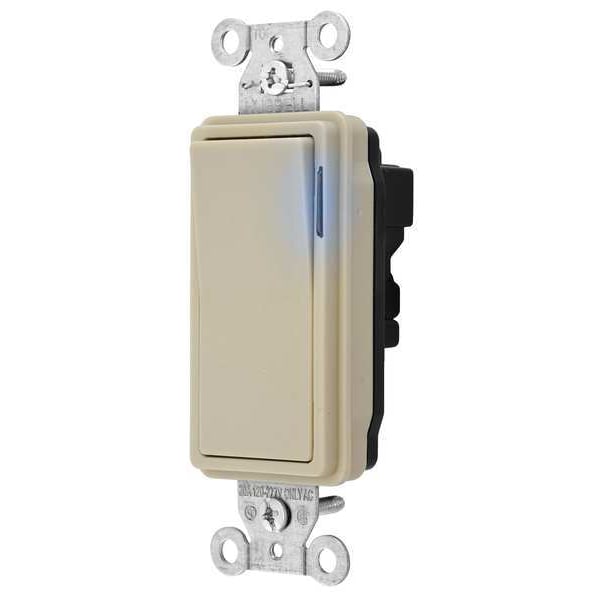

Hubbell Wiring Device-Kellems Illuminated Wall Switch, 3-Way, 20A, Ivory SNAP2123ILI - main

Illuminated Wall Switch, 3-Way, 20A, Ivory

  • Mfr # SNAP2123ILI

  • Zoro # G4530915

product price: $51.65
/ea

Key Features

Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2123ILI
Zoro #
G4530915
UPC #
783585186337
Country of Origin
China

Dimensions

Overall Width
1.4 in
Overall Height
1.5 in
Length
4.28 in
Height
1.54 in
Width
1.44 in
Dimensions
4.28 in x 1.44 in x 1.54 in

Details

Item
Illuminated Wall Switch
Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Standards
UL Listed
Rated HP
1 to 2
Antimicrobial
No
Description/Special Features
Light On with Load Off
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees F
Voltage Rating
120/277V AC
Number of Switches
1
Current Rating
20 A
Illuminated
Yes
Resistance Properties
Impact Resistant
Housing Material
Thermoplastic
Wire Connection Type
Modular Wiring
Market
Industrial
Grounding
Grounded
Maximum Operating Temperature
167 Degrees F
Type
Rocker/Decorator
Style
Three Way
Temperature Rise
30°C maximum at rated current
Max. Working Voltage
277V AC
Overload
Minimum 4.8 times rated current for 100 cycles
Max. Continuous Current
20A
Toggle Color
Ivory
Base Material
Thermoplastic, Black
Rocker Material
Thermoplastic
Terminals
Brass
Contacts
Silver Alloy
Flammability
UL 94V-2
Top Material
Thermoplastic, Red
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Terminal Accommodations
Uses SNAPConnect Connector
Current / Amperage Rating
20 A
Indicator(s) Type
Blue LED
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Series
Illuminated
Material
Thermoplastic
Indicator
Light On with Load Off
Number Of Poles
Single Pole
Action
SPDT
Item Type
Three Way Style Line Illuminated Decorator Switch
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current
Amperage Rating
20 A

Description

Illuminated Wall Switch, Color Ivory, Current Rating 20 A, Illuminated Yes, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Modular Wiring, Grounding Grounded, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
