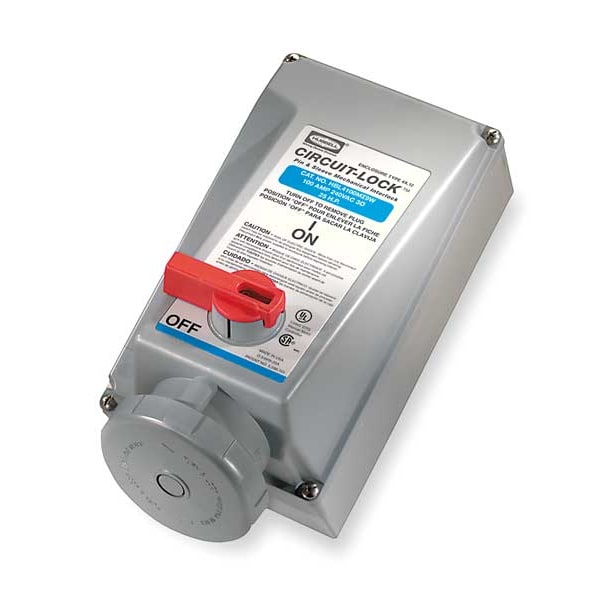

Hubbell Wiring Device-Kellems Interlock, Mechanical HBL560MI9W - main

Interlock, Mechanical

  • Mfr # HBL560MI9W

  • Zoro # G2060527

product price: $2,062.80
/ea
Free Shipping & Returns

Key Features

Type
Unfused, Pin and Sleeve
Voltage
120/208V AC
Amps
60 A
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL560MI9W
Zoro #
G2060527
UPC #
783585406176
Country of Origin
United States

Dimensions

Overall Width
7.75 in
Maximum Wire Size
2 AWG
Minimum Wire Size
8 AWG
Overall Height
13.65 in
Cord Size
10 to 2 AWG
Wire Size
#8 AWG to #2 AWG
Display Size
Standard Sized Product

Details

Item
Watertight Mechanical Interlock
Type
Unfused, Pin and Sleeve
Voltage
120/208V AC
Amps
60 A
Phase
Three
Number of Poles
4
Viewing Window
No
Number of Wires
5
Material
Thermoplastic
Fused / Nonfused
Nonfused
Includes
5
HP
15 hp
Use With
5Z920
Accepts Plug Number
5Z920
Color
Blue
Standards
UL Listed
Minimum Operating Temperature
-40 Degrees F
IP Rating
IP67
UL 94 Flammability Rating
5VA, V-0
Circuit Breaker
No
Housing Color
Blue
Includes Mounting Hardware
Yes
Fuse Protection
Non-Fused
Horsepower Rating
15 hp
For Location
Indoor, Outdoor
Electrical Connection Type
Pin and Sleeve
Maximum Operating Temperature
167 Degrees F
Reverse Service
No
Housing Material
Thermoplastic
Circuit Breaker Amp Rating
60 A
NEMA Enclosure Rating
Not Rated
Compatible Plug Manufacturer Part Number
5Z920
Resistance Properties
Watertight
Voltage Rating
120/208V AC
Grounding
Grounded
Locking Handle
Yes
Current Rating
60 A
Max. Voltage
600V AC
Weight
8.65 lb
Dielectric Strength
3000V AC
NEMA Rating
4X, 12
UV Resistance
All Materials are UV Stabilized
Flammability
UL 94 5VA, UL 94 V0
Service
Standard
Screw Material
300 Stainless Steel
Gasket Material
Neoprene
Operating Temp.
-40 to 75°C
Industry Standard(s)
UL Listed
Wattage
12480
Voltage Rating Description
3 Phase Y 120/208 VAC
Style
Standard Service
Environmental Conditions
Watertight
Amperage Rating
60 A
Application
High Ampacity Watertight Connections
Series
Unfused Circuit-Lock
Item Type
Mechanically Interlocked Single
Connectivity
Pressure Terminal Screws
Current / Amperage Rating
60 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 Classification Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown) Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids). Environmental - Operating Temperature - Max. Continuous +75°C Min. Continuous -40°C Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - External adjustable feet Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

The HUBBELL Unfused Circuit-Lock® Watertight Mechanical Interlock is a pin and sleeve device rated for use with specified ampacity and watertight electrical connections in indoor and outdoor environments. This unit integrates a disconnect switch with a receptacle, including a lockable feature compatible with OSHA Lockout/Tagout procedures. The interlock mechanism prevents the switch from being turned on unless the plug is fully engaged, and incorporates an interlock mechanism that restricts removal of the plug when the switch is on. It features a non-metallic thermoplastic housing material rated for use in demanding environmental conditions, supporting up to 60 amps at 120/208V AC (three-phase Y), and accepts compatible plugs such as part number 5Z920.


Key Features of the HUBBELL Unfused Circuit-Lock® Watertight Mechanical Interlock:

  • Amperage Rating: Rated for 60 A current at up to 600V AC; suitable for motor loads up to 15 HP

  • Electrical Connection: Pin and sleeve design with pressure terminal screws; accommodates #8 AWG to #2 AWG wire sizes

  • Watertight Construction: IP67 ingress protection; NEMA Type 4X and Type 12 enclosure ratings provided by manufacturer specifications. Watertight/washdown/dust-tight claims omitted.

  • Housing Material: Thermoplastic enclosure with UV stabilization; includes neoprene gasket for moisture resistance

  • Operating Temperature Range: -40°C to +75°C continuous operation

  • Locking Handle: Integrated lockable handle suitable for OSHA Lockout/Tagout procedures

  • Circuit Protection: Non-fused mechanical interlock design without circuit breaker functionality

  • Standards Compliance: UL Listed; flammability rated UL94-5VA/V0; dielectric strength of 3000V AC minimum

  • Mounting Hardware Included: Screw mounting hardware provided for installation convenience
