  11. Liquid Tight Connector, 1/2in., 90 deg, Org

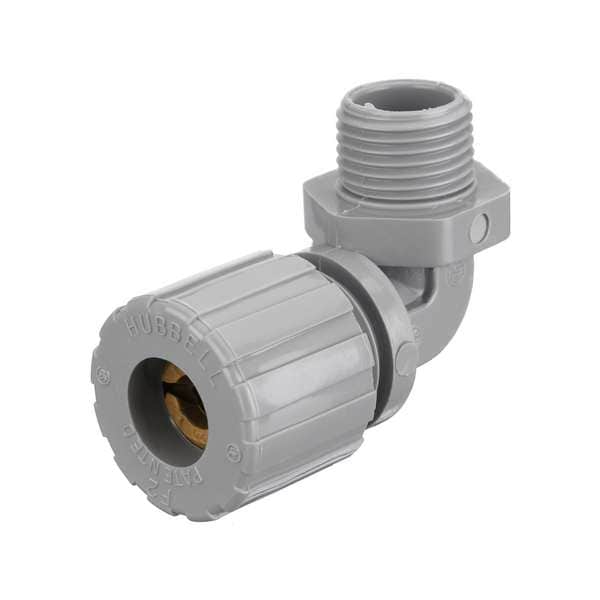

Hubbell Wiring Device-Kellems Liquid Tight Connector, 1/2in., 90 deg, Org NHC1020CR - main

Liquid Tight Connector, 1/2in., 90 deg, Org

  • Mfr # NHC1020CR

  • Zoro # G0815044

product price: $16.89
/ea

Key Features

Material
Nylon
Box Connection
1/2 in MNPT
Strain Relief Type
No External Strain Relief
Insulated
Yes
Cord Dia. Range
0.13 in to 0.19 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NHC1020CR
Zoro #
G0815044
UPC #
783585208725
Country of Origin
United States

Dimensions

Cord Dia. Range
0.13 in to 0.19 in
Conduit Size
1/2"
Length
2-1/2"
Length - External Strain Relief
No External Strain Relief
Length - Box to End of Connector
1 7/16 in
Hub Size
1/2 in MNPT
Compatible Conduit Trade Size
1/2 in
Form Size
F2
Thread Size
1/2 in
Dimension D
.58" (14.6) Throat Dia.
Recommended Knockout Hole Size
.86"- .91" (21.8-23.0)
Dimension E A/F
1.12" (28.2)
Cord Diameter Range
.13"- .19" (3.2- 4.7)
Dimension G
1.32" (33.4) Dia.
Dimension A
1.41" (35.8)
Dimension C
.55" (14.0)
Dimension E A/C
1.23" (31.2)
Dimension B
2.50" (63.5) Ref.
Display Size
1/2" NPT

Details

Item
Liquid Tight Cord Connector
Material
Nylon
Box Connection
1/2 in MNPT
Strain Relief Type
No External Strain Relief
Insulated
Yes
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Connector Type
90 Degrees
Material - Cord Connector
Nylon
Item - Cord Connector
Liquid Tight Cord Connector
Number of Cords
1
Material - External Strain Relief
No External Strain Relief
Style - Connector
90 Degrees
Body Color - Cord Connector
Gray
Color
Orange
Gland Color Code
Orange
Standards
CSA LR27378, UL E54218(M)
For Use With
Kellems Wire Management
For Maximum Cable OD
0.19 in
Minimum Operating Temperature
-30 Degrees F
Resistance Properties
Corrosion Resistant
Compatible Conduit Type
Liquid Tight Cord Connector
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Maximum Operating Temperature
225 Degrees F
Thread Type
NPT Thread
Grommet Color Code
Orange
Body Color
Gray
Thread Gender
Male
Body Material
Nylon
Liquid Tight
Yes
Environmental Rating
Hazardous Locations
Connection Orientation
90 Degrees
IP Rating
IP66
Collar Material
Nylon
For Minimum Cable OD
0.13 in
Cord Connector Body Style
90 Degree Male
Material/Style
Nylon Standard Style
Product Type
Cord Connectors
Color Code
Orange
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Item Type
Cord Connectors
Type
90° Male
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Material - Mounting Hardware
Locknut or Tapped Opening
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
OEM Brand Name
Hubbell Wiring Device-Kellems
Number Of Conductors
Single
Industry Standard(s)
UL Listed
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Conductor Range
0.13-0 .19 in (3.2- 4.7 mm)
Series
Standard Duty
Application
90 Degree Male- Form 2

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.13 in to 0.19 in, Box Connection 1/2 in MNPT, Material - Cord Connector Nylon, External Strain Relief Material No External Strain Relief, Gland Color Code Orange, Body Color - Cord Connector Gray, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 7/16 in, Insulated Yes, Standards CSA LR27378, UL E54218(M)
