  11. Locking Connector, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

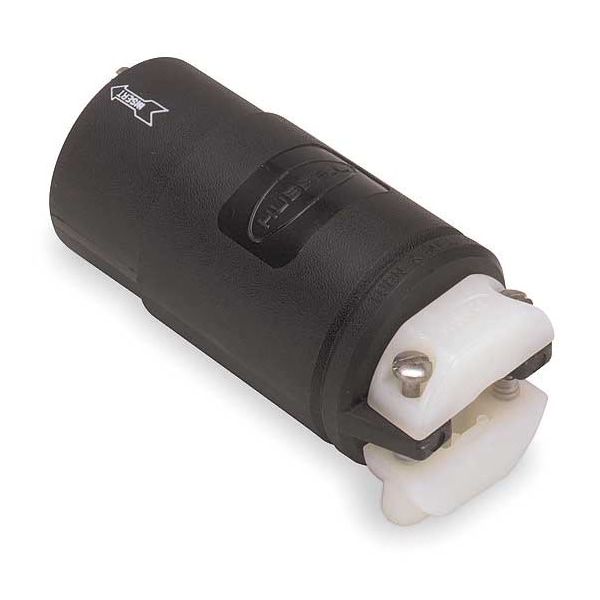

Hubbell Wiring Device-Kellems Locking Connector, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL23001HGB - main

Locking Connector, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL23001HGB

  • Zoro # G0271503

product price: $187.65
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL23001HGB
Zoro #
G0271503
UPC #
783585015729
Country of Origin
United States

Dimensions

Cord Size
0.320 in to 0.660 in
Display Size
Standard
Outside Diameter
1.72 in
Overall Length
3.22 in
For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.32 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap
Standards
UL Listed
Resistance Properties
Impact Resistant
Material
Composite
Grade
Hospital
IP Rating
IP20
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Number Of Conductors
3-Wire Grounding
Mounting Hardware Material
Cord Mounted
Carton Quantity
20
Brand
Hubbell Wiring Device-Kellems
Nema Rating
Non-NEMA
Temp. Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Amperage
20 A
Insulation
Insulated Body
Connectivity
Pressure Terminal Screws
Number Of Poles
2-Pole
UL 94 Flammability Rating
HB
Midget Locking
No
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
75 Degrees C
Housing Material
Nylon
For Location
Indoor
Contact Material
Bronze
Amperage Rating
20 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Cord Mounted
Conductor Range
#14 AWG to #12 AWG
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
NEMA Plug Configuration
Non-NEMA
Number of Blades
2
Antimicrobial
No

Description

The HUBBELL 20A Hospital Locking Plug is a locking connector intended for use in hospital-grade applications. It includes a nylon housing and insulated body; rated for use in indoor dry locations. The plug supports 2-pole, 3-wire grounding configurations; rated at 125V AC and 20A.


Key Features of the HUBBELL - 20A Hospital Locking Plug:

  • Amperage/Voltage Rating: Rated for 20 A at 125V AC single phase

  • Conductor Range: Accepts #14 AWG to #12 AWG wire sizes

  • Cord Size Compatibility: Supports cords with diameters from 0.320 in to 0.660 in

  • Housing Material: Nylon composite housing

  • Contact Material: Bronze contacts molded into the nose for damage resistance

  • Cable Retention: Mechanical cord grips provide strain relief

  • Connection Type: Pressure terminal screws (screw terminals) for wiring connection

  • Temperature Rating: Operates continuously from -40°C (w/o impact) up to +75°C

  • NEMA Configuration: Non-NEMA; straight connection orientation; grounded design

  • UL Listed and UL94 HB flammability rated; IP20 ingress protection level
