  11. Locking Connector, L14-30R, 30 A, 125/250V AC, Single Phase, 3 Pole, Spring Clamp Terminals

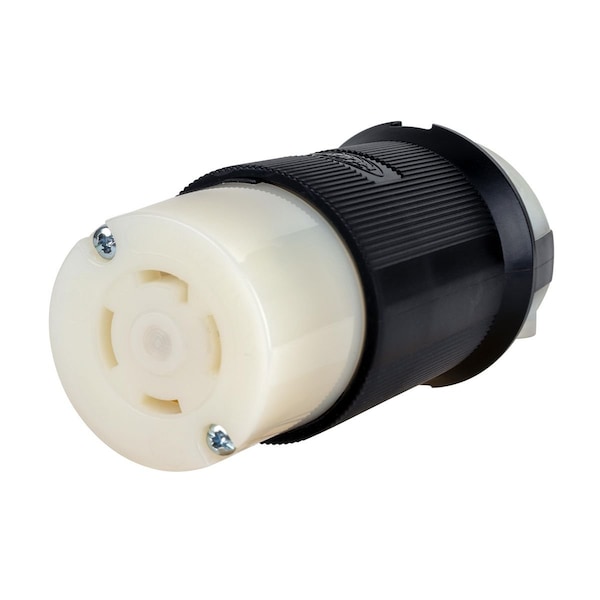

Hubbell Wiring Device-Kellems Locking Connector, L14-30R, 30 A, 125/250V AC, Single Phase, 3 Pole, Spring Clamp Terminals HBL2713ST - main

Locking Connector, L14-30R, 30 A, 125/250V AC, Single Phase, 3 Pole, Spring Clamp Terminals

  • Mfr # HBL2713ST

  • Zoro # G406170854

product price: $99.43
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2713ST
Zoro #
G406170854
UPC #
783585719085
Country of Origin
China

Dimensions

Minimum Wire Size
16 AWG
For Maximum Cable Diameter
1.15 in
Maximum Wire Size
8 AWG
Outside Diameter
2.33 in
For Minimum Cable Diameter
0.35 in
Overall Length
2.33 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Spring Clamp Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
IP Rating
IP20
Grade
Federal Specification
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Midget Locking
No
For Location
Indoor
UL 94 Flammability Rating
HB
Housing Material
Nylon

Description

The HUBBELL Locking Connector is a screwless electrical connector designed for wire termination in indoor, dry industrial settings. Featuring the EdgeConnectTM system, it allows users to insert wires and secure them by pressing a plunger; tool-free operation. The connector accommodates 8–16 AWG wire sizes and supports single-phase applications up to 30 A at 125/250V AC with a NEMA L14-30R configuration.


Key Features of the HUBBELL Locking Connector:

  • Wire Connection Type: Spring clamp terminals allow for tool-free terminations.

  • NEMA Configuration: L14-30R; intended for use with applications requiring the L14-30R configuration.

  • Current & Voltage Rating: Rated for 30 A and 125/250V AC single-phase circuits.

  • Wire Size Compatibility: Accepts wire sizes from 8 AWG to 16 AWG.

  • Cable Diameter Range: Accepts cable diameters from 0.35 in to 1.15 in.

  • Operating Temperature Range: Operating temperature range: -40°C to +75°C.

  • Housing Material & Resistance Properties: Nylon housing provides impact resistance; UL94 HB flammability rating.

  • Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, and UL498 standards.

  • Ingress Protection (IP): Rated IP20 for indoor use only; not shrouded or midget locking type.
