  11. Locking Connector, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

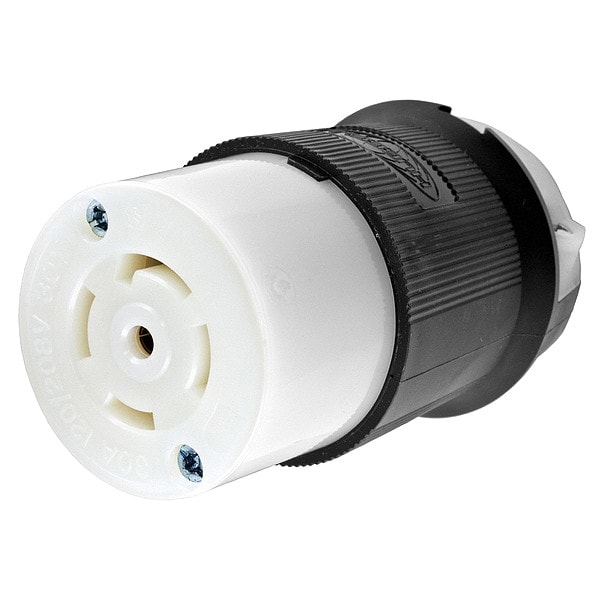

Hubbell Wiring Device-Kellems Locking Connector, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White HBL2813 - main

Locking Connector, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

  • Mfr # HBL2813

  • Zoro # G0966104

product price: $105.23
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L21-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2813
Zoro #
G0966104
UPC #
783585039657
Country of Origin
United States

Dimensions

Cord Size
0.350 in to 1.150 in
Overall Length
2.33 in
For Maximum Cable Diameter
1.15 in
Minimum Wire Size
16 AWG
Outside Diameter
2.33 in
Maximum Wire Size
8 AWG
For Minimum Cable Diameter
0.35 in
Dimensions
2.33 in x 2.33 in x 3.86 in
Wire Size
#16 AWG to #8 AWG
Length
2.33 in
Height
3.86 in
Width
2.33 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L21-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
Grade
Industrial/Commercial
Boot Code
C
IP Rating
IP20
Special Features
Terminals identified in accordance with UL 498
Body Material
Natural White Nylon
Housing Material
Nylon
Midget Locking
No
UL 94 Flammability Rating
HB
Horsepower Rating
3 hp
For Environment
Dry
For Location
Indoor
Contact Material
Brass
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Power Indicating Light
No
Minimum Operating Temperature
-40 Degrees F
Weight
0.4
Dielectric Strength
Withstands 2,000V minimum
Flame Resistant
HB or better per UL94 or CSA 22.2 No. 0.6
Amperage Rating
30 A
Application
Heavy Duty Industrial
Material - Mounting Hardware
Cord Mounted
Performance
Electrical-Current Interrupting - Certified at full rated current Electrical - Dielectric Voltage - 2,000V minimum Mechanical - Terminal Accommodation - #16 - #8 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
Cord Range
0.350"-1.150" (9-29)
Insulation
Insulated Body
OEM Brand Name
Hubbell Wiring Device-Kellems
Power Indicator
No
Antimicrobial
No

Description

The HUBBELL 30A Twist-Lock Connector L21-30R is a locking connector rated for use in industrial applications. It features a ribbed nylon housing for enhanced grip and resistance to impact and chemicals, as well as an integral dust shield that helps protect the wiring chamber from contaminants. The connector accommodates 4 poles and 5 wires, supports three-phase power at 120/208VAC, and uses screw terminals for wire connection.


Key Features of the HUBBELL 30A Twist-Lock Connector L21-30R:

  • Amperage/Voltage: Rated for 30 A and 120/208V AC three-phase applications

  • NEMA Configuration: L21-30R with grounded design

  • Wire Accommodation: Accepts #16 AWG to #8 AWG stranded copper wire; cord range from 0.350" to 1.150"

  • Housing Material: Ribbed natural white nylon constructed from ribbed natural white nylon

  • Cord Grip Design: Cord grip design intended to reduce strain on terminations

  • Wire Entry: Funnel-shaped wire entry

  • Dust Protection: Integral dust shield included

  • Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous operation

  • Flame Resistance: Meets HB or better per UL94 or CSA C22.2 No.0.6 standards

  • Certifications/Listings: UL 498, CSA C22.2 No.42, Federal Specification W-C-596 listed/certified
