  11. Locking Connector, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Spring Clamp Terminals

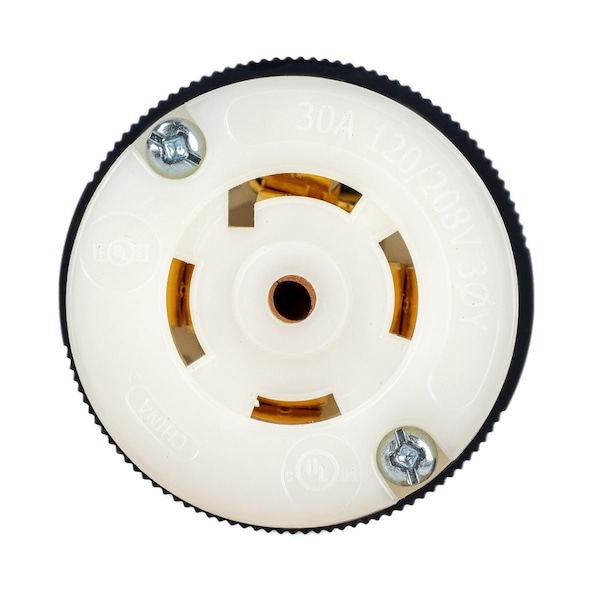

Hubbell Wiring Device-Kellems Locking Connector, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Spring Clamp Terminals HBL2813ST - main

Locking Connector, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Spring Clamp Terminals

  • Mfr # HBL2813ST

  • Zoro # G506170822

product price: $99.02
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L21-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2813ST
Zoro #
G506170822
UPC #
783585719078
Country of Origin
China

Dimensions

Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Overall Length
2.33 in
For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L21-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Spring Clamp Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
Grade
Federal Specification
IP Rating
IP20
Midget Locking
No
UL 94 Flammability Rating
HB
Minimum Operating Temperature
-40 Degrees F
For Environment
Dry
Housing Material
Nylon
Market
Industrial
Maximum Operating Temperature
75 Degrees C
For Location
Indoor

Description

The HUBBELL Locking Connector is a three-phase, 30 A locking connector designed for industrial indoor use in dry environments. Featuring the EdgeConnectTM screwless termination system, it enables wire insertion and connection via plunger mechanism; no additional tools required. The connector accommodates wire sizes from 8 AWG to 16 AWG and uses spring clamp terminals for electrical wiring.


Key Features of the HUBBELL Locking Connector:

  • NEMA Configuration: L21-30R

  • Current Rating: 30 A

  • Voltage Rating: 120/208V AC

  • Phase: Three-phase operation

  • Number of Poles/Wires: 4 poles, 5 wires

  • Wire Connection Type: Spring clamp terminals with funnel-shaped entry for simplified termination

  • No Tools Required: Screwless design does not require use of screwdriver or torque wrench during installation

  • Cord Grip Design

  • Housing Material: Impact-resistant nylon; color black and white

  • Operating Temperature Range: -40°C to 75°C

  • UL 94 Flammability Rating: HB; IP20 rated for indoor use only

  • Standards Compliance: CSA C22.2 No.42, Federal Specification W-C-596, UL 498
