Shop LEGRAND

TURNLOK

  • Mfr # L1520C

  • Zoro # G922784177

product price:
$
65.39
/ea

Key Features

Resistance Properties
Corrosion Resistant
Wire Rope Length
3.33 in
Standards
UL 498, UL File No. E146159
Connection Orientation
Straight
For Minimum Cable Diameter
0.225 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L1520C
Zoro #
G922784177
UPC #
785007152012
Country of Origin
Mexico

Dimensions

Wire Rope Length
3.33 in
For Minimum Cable Diameter
0.225 in
For Maximum Cable Diameter
1.15 in
Outside Diameter
2.2 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Length
3.33 in
Length
3.33 in

Details

Resistance Properties
Corrosion Resistant
Standards
UL 498, UL File No. E146159
Connection Orientation
Straight
Wire Connection Type
Screw Terminals
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
L15-20R
For Location
Indoor
Housing Color
Black
Shrouded
No
Housing Material
Nylon 6/6
Phase
Three
Features
Double Dovetail Design Provides Superior Protection Against Cord Pull-Out Forces, New-Design External Cord Grips Provide Visible Assurance of Safe and Proper Cord Retention, Raised Ribs Provide Non-Slip Gripping Profile for Turning to Lock and Unlock, Rounded Back Contour Reduces Snags and Hang-Ups on the Job Site, Visible Stamped NEMA Configuration and Device Rating

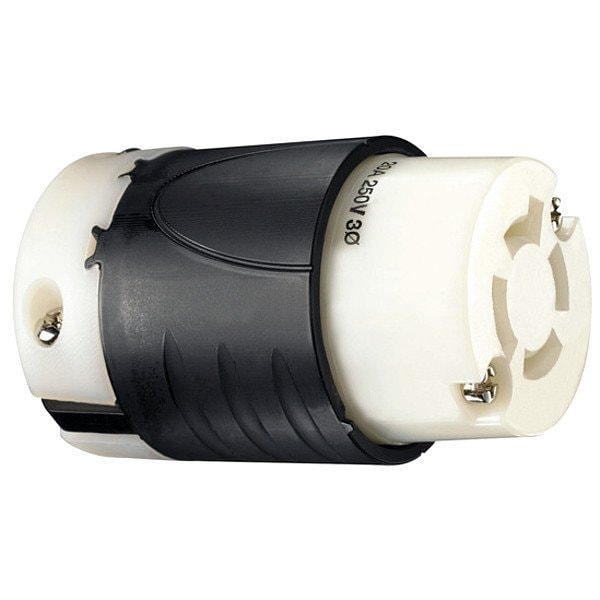

Item
Locking Connector
IP Rating
IP20
Number of Wires
4
Horsepower Rating
3 hp
Minimum Operating Temperature
-40 Degrees F
Power and Ground Indicating Light
No
Grade
General Use
Contact Material
Brass
UL 94 Flammability Rating
V-2
Current Rating
20 A
Number of Poles
2
Series
TURNLOK(R)
Maximum Operating Temperature
167 Degrees F
Voltage Rating
250V AC
Market
Industrial
Midget Locking
No

Description

Locking Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, Housing Material Nylon 6/6, IP Rating IP20, NEMA Receptacle Configuration L15-20R, Number of Poles 2, Number of Wires 4, Phase Three, Resistance Properties Corrosion Resistant, Shrouded No, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.225 in, Grade General Use
