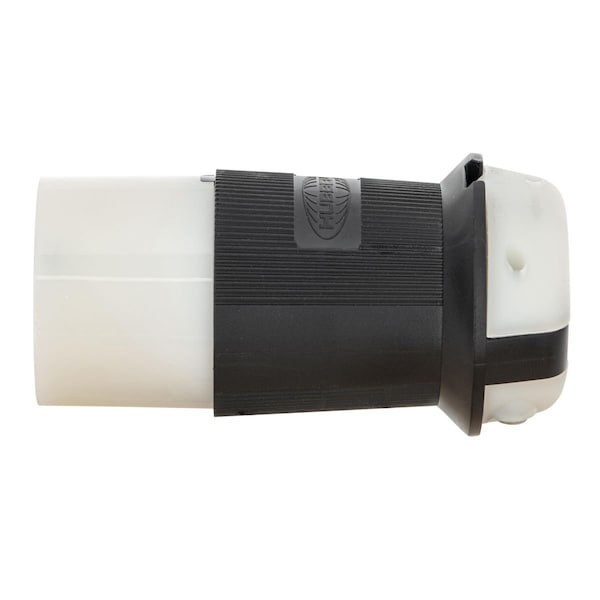

Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Spring Clamp Terminals
Mfr # HBL2613ST
Zoro # G306170831
product price: $71.15
/eaKey Features
NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HBL2613ST
Zoro #
G306170831
UPC #
783585719283
Country of Origin
China
Dimensions
For Maximum Cable Diameter
0.9375 in
For Minimum Cable Diameter
0.36 in
Details
Item
Locking Connector
NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
IP Rating
IP20
Standards
CSA C22.2, Fed. Spec. W-C596G
Resistance Properties
Impact Resistant
Market
Industrial
Midget Locking
No
Housing Material
Nylon
Series
EdgeConnectâ„¢
Description
Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L5-30R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Impact Resistant, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Spring Clamp Terminals, Wiring Style Standard, Cap Type No Cap or Cover, For Minimum Cable Diameter 0.35 in, Grounding Grounded, Market Industrial, Midget Locking No
