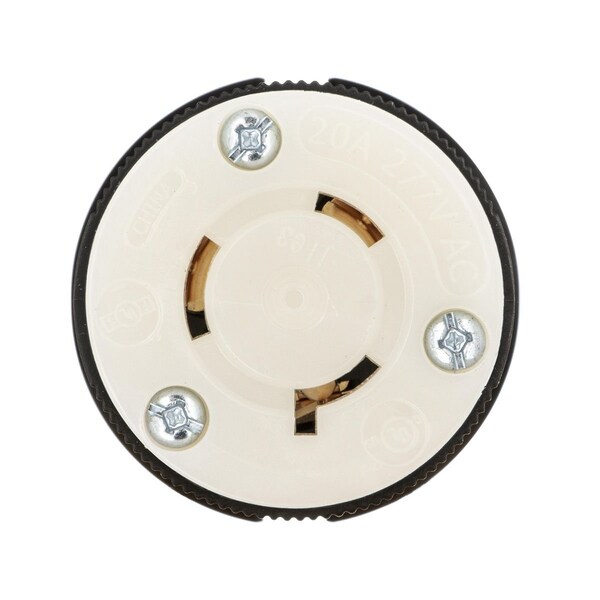

Locking Connector, L7-20R, 20 A, 277V AC, Single Phase, 2 Pole, Spring Clamp Terminals
Mfr # HBL2333ST
Zoro # G106170826
product price: $38.07
/eaKey Features
NEMA Receptacle Configuration
L7-20R
Current Rating
20 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HBL2333ST
Zoro #
G106170826
UPC #
783585719290
Country of Origin
China
Dimensions
For Maximum Cable Diameter
0.9375 in
For Minimum Cable Diameter
0.36 in
Maximum Wire Size
8 AWG
Outside Diameter
2.26 in
Overall Length
4.12 in
Minimum Wire Size
16 AWG
Description
Locking Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L7-20R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Impact Resistant, Shrouded No, Voltage Rating 277V AC, Wire Connection Type Spring Clamp Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Copper, For Maximum Cable Diameter 0.93 in, For Minimum Cable Diameter 0.36 in
