  11. Locking Connector, L8-20R, 20 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

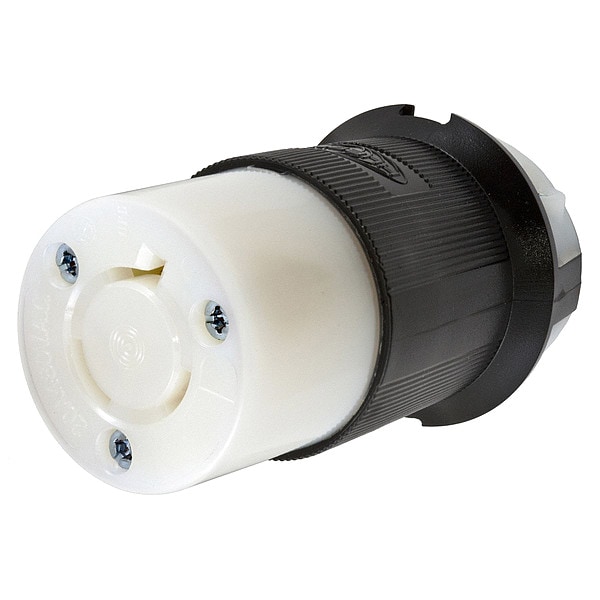

Hubbell Wiring Device-Kellems Locking Connector, L8-20R, 20 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL2343 - main

Locking Connector, L8-20R, 20 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL2343

  • Zoro # G0266183

product price: $43.19
/ea

Key Features

NEMA Receptacle Configuration
L8-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2343
Zoro #
G0266183
UPC #
783585037981
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.9375 in
For Minimum Cable Diameter
0.36 in
Cord Size
0.360 in to 0.930 in
Outside Diameter
2.26 in
Overall Length
2.26 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Wire Size
#16 AWG to #8 AWG
Length
2.26 in
Width
2.26 in
Dimensions
2.26 in x 2.26 in x 3.86 in
Height
3.86 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L8-20R
Current Rating
20 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
IP Rating
IP20
Standards
CSA Certified C22.2 No.42, Fed.Spec. W-C-596, UL 498
Resistance Properties
Impact Resistant
Grade
Industrial
Boot Code
B
Material
Nylon
Special Features
Terminals identified in accordance with UL 498
Body Material
Natural White Nylon
Contact Material
Brass
Power Indicating Light
No
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
For Location
Indoor
Midget Locking
No
Horsepower Rating
5 hp
For Environment
Dry
UL 94 Flammability Rating
HB
Maximum Operating Temperature
75 Degrees C
Dielectric Strength
Withstands 2,000V minimum
Flame Resistant
HB or better per UL94 or CSA 22.2 No. 0.6
Weight
0.35
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Material - Mounting Hardware
Cord Mounted
Application
Heavy Duty Industrial
Cord Range
0.360"-0.930" (9-24)
Amperage Rating
20 A
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body
Antimicrobial
No
Power Indicator
No

Description

• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.
