  11. Locking Connector, L8-30R, 30 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

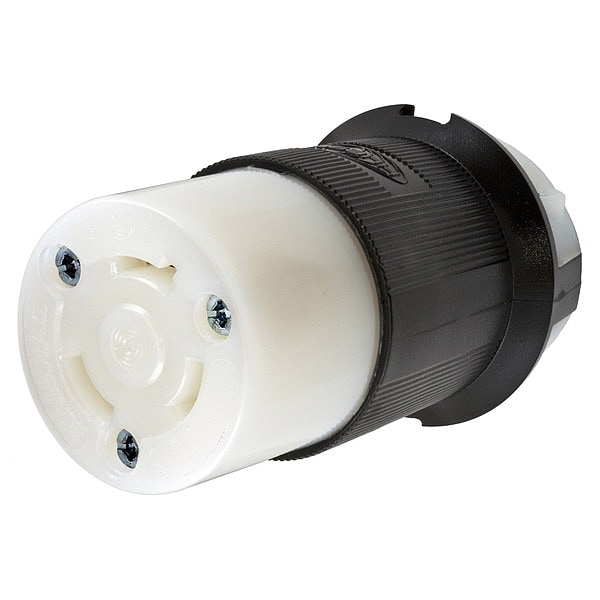

Hubbell Wiring Device-Kellems Locking Connector, L8-30R, 30 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL2643 - main

Locking Connector, L8-30R, 30 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL2643

  • Zoro # G1910797

product price: $80.55
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L8-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2643
Zoro #
G1910797
UPC #
783585039015
Country of Origin
United States

Dimensions

Cord Size
0.360 in to 0.930 in
Minimum Wire Size
16 AWG
For Maximum Cable Diameter
0.9375 in
Overall Length
2.26 in
Maximum Wire Size
8 AWG
Outside Diameter
2.26 in
For Minimum Cable Diameter
0.325 in
Width
2.26 in
Wire Size
#16 AWG to #8 AWG
Length
2.26 in
Height
3.86 in
Dimensions
2.26 in x 2.26 in x 3.86 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L8-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
Grade
Industrial
IP Rating
IP20
Boot Code
B
Material
Nylon
Body Material
Natural White Nylon
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Market
Industrial
For Environment
Dry
Horsepower Rating
2 hp
Contact Material
Brass
For Location
Indoor
Midget Locking
No
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees F
Power Indicating Light
No
Housing Material
Nylon
UL 94 Flammability Rating
HB
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Dielectric Strength
Withstands 2,000V minimum
Weight
0.35
Application
Heavy Duty Industrial
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Amperage Rating
30 A
Insulation
Insulated Body
Cord Range
0.325"-0.930"
Material - Mounting Hardware
Cord Mounted
Power Indicator
No
Antimicrobial
No

Description

Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L8-30R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Impact Resistant, Shrouded No, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Brass, For Maximum Cable Diameter 0.93 in, For Minimum Cable Diameter 0.325 in
