Shop HUBBELL WIRING DEVICE-KELLEMS

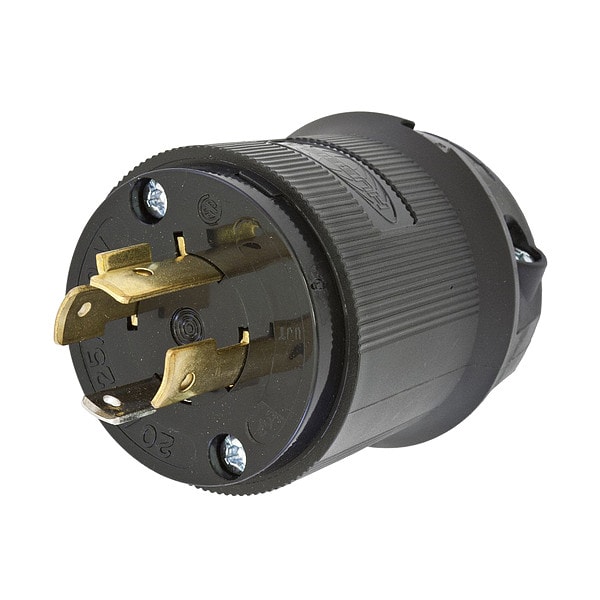

Locking Plug, L14-20P, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black

  • Mfr # HBL2411BK

  • Zoro # G1579663

product price:  $38.95
/ea

Key Features

NEMA Plug Configuration
L14-20P
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2411BK
Zoro #
G1579663
UPC #
783585172309
Country of Origin
United States

Dimensions

Cord Size
0.350 in to 1.150 in
Outside Diameter
2.33 in
For Maximum Cable Diameter
1.15 in
Face Diameter
2.21 in
For Minimum Cable Diameter
0.35 in
Minimum Wire Size
16 AWG
Body Length
2.75 in
Maximum Wire Size
8 AWG
Wire Size
#16 AWG to #8 AWG
Length
2.75 in
Width
2.33 in
Dimensions
2.75 in x 2.33 in x 2.33 in
Height
2.33 in

Details

Item
Locking Plug
NEMA Plug Configuration
L14-20P
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Boot Code
C
Grade
Industrial
IP Rating
IP20
Material
Nylon
Application
Extra Heavy Duty Industrial
Maximum Operating Temperature
75 Degrees C
Market
Industrial
For Location
Indoor
Minimum Operating Temperature
-40 Degrees C
Blade Material
Brass
Horsepower Rating
2 hp
Housing Material
Nylon
For Environment
Dry
Polarized
Yes
Flammability
HB or better per UL 94 or CSA 22.2 No. 0.6
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Type
All Listed Portables
Amperage Rating
20 A
Cord Range
0.350"-1.150" (9-29)
Material - Mounting Hardware
Cord Mounted
Amps
20
Antimicrobial
No
NEMA Configuration
L14-20

Description

• Superior cord grip design protects terminations from excess strain
• Clear, funnel shaped wire entry for ease of termination
• Integral dust shield protects wiring chamber from dust or contaminants
