  11. Locking Plug, L15-20P, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

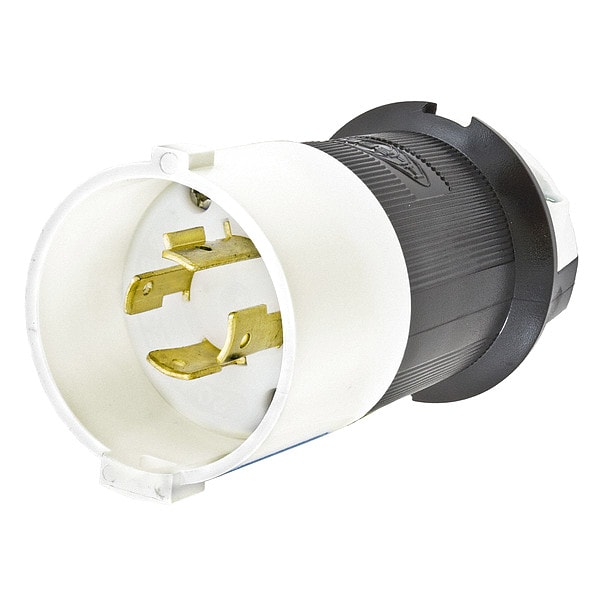

Hubbell Wiring Device-Kellems Locking Plug, L15-20P, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White HBL2421S - main

Locking Plug, L15-20P, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # HBL2421S

  • Zoro # G2002664

product price: $47.95
/ea

Key Features

NEMA Plug Configuration
L15-20P
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2421S
Zoro #
G2002664
UPC #
783585234540
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Cord Size
0.350 in to 1.150 in
Outside Diameter
2.33 in
Face Diameter
2.23 in
Maximum Wire Size
8 AWG
Body Length
2.33 in
Minimum Wire Size
16 AWG
Length
2.33 in

Details

Item
Locking Plug
NEMA Plug Configuration
L15-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant, Watertight
Grade
Industrial
Material
Nylon
For Environment
Dry
Market
Industrial
For Location
Indoor
Maximum Operating Temperature
75 Degrees C
Polarized
Yes
Housing Material
Nylon
Horsepower Rating
3 hp
Minimum Operating Temperature
-40 Degrees C
Blade Material
Brass
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Antimicrobial
No
NEMA Configuration
L15-20
Amps
20

Description

The HUBBELL 20A Twist-Lock Plug (L15-20P) is a locking plug intended for use in industrial electrical connections where locking functionality is required. It features a ribbed nylon housing; rated for specified impact and chemical resistance per manufacturer specifications. The plug supports three-phase power at 250V AC with a current rating of 20 amps, using screw terminals for wire connection and an integral dust shield covering the wiring chamber from contaminants.


Key Features of the HUBBELL 20A Twist-Lock Plug L15-20P:

  • NEMA Configuration: L15-20P; Three-pole, four-wire grounded design

  • Current/Voltage Rating: Rated for 20 A at 250V AC

  • Wire Size Compatibility: Accepts wire sizes from 16 AWG to 8 AWG

  • Cord Size Range: Accepts cable diameters between 0.35 in and 1.15 in

  • Housing Material: Nylon construction; rated by manufacturer as resistant to impacts and certain chemicals

  • Operating Temperature Range: -40°C to +75°C (continuous)

  • Horsepower Rating: Up to 3 hp

  • Screw terminal connections with cord grip design intended to limit strain on wire terminations

  • Integral Dust Shield covering the wiring chamber from dust or contaminants
